Description
Product Spec
Max Power: 3250 Watts
Max Current: 85 Amps
Max Volts: 12S
Max Torque: 8Nm
Motor Resistance: 0.05Ohm
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Weight: 1.9 lb / 0.86 kg
The motor length:74mm
The motor diameter: 63mm
SHAFT: Diameter 8mm, 30mm length, 3x3x20mm keyway slot.
Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
BLDC Motor
The number of pole: 14
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
ESC Sensor Wires required to use with ESC.
Shipping
6374 190KV EPOWER Motor (Fits 63mm Motor Mount)
Two types of bottom ID design, will ship randomly
What's Our Product Feature?
Stator: Lamination Japan steel
12awg high strand silicone wire with 4.0mm gold bullet connectors.
Both support sensor and sensorless mode!
Reference Information
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
The key for keyawy is not included with motors for shipping
Max Power: 3250 Watts
Max Current: 85 Amps
Max Volts: 12S
Max Torque: 8Nm
Motor Resistance: 0.05Ohm
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Weight: 1.9 lb / 0.86 kg
The motor length:74mm
The motor diameter: 63mm
SHAFT: Diameter 8mm, 30mm length, 3x3x20mm keyway slot.
Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
BLDC Motor
The number of pole: 14
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
ESC Sensor Wires required to use with ESC.
Shipping
6374 190KV EPOWER Motor (Fits 63mm Motor Mount)
Two types of bottom ID design, will ship randomly
What's Our Product Feature?
Stator: Lamination Japan steel
12awg high strand silicone wire with 4.0mm gold bullet connectors.
Both support sensor and sensorless mode!
Reference Information
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
The key for keyawy is not included with motors for shipping

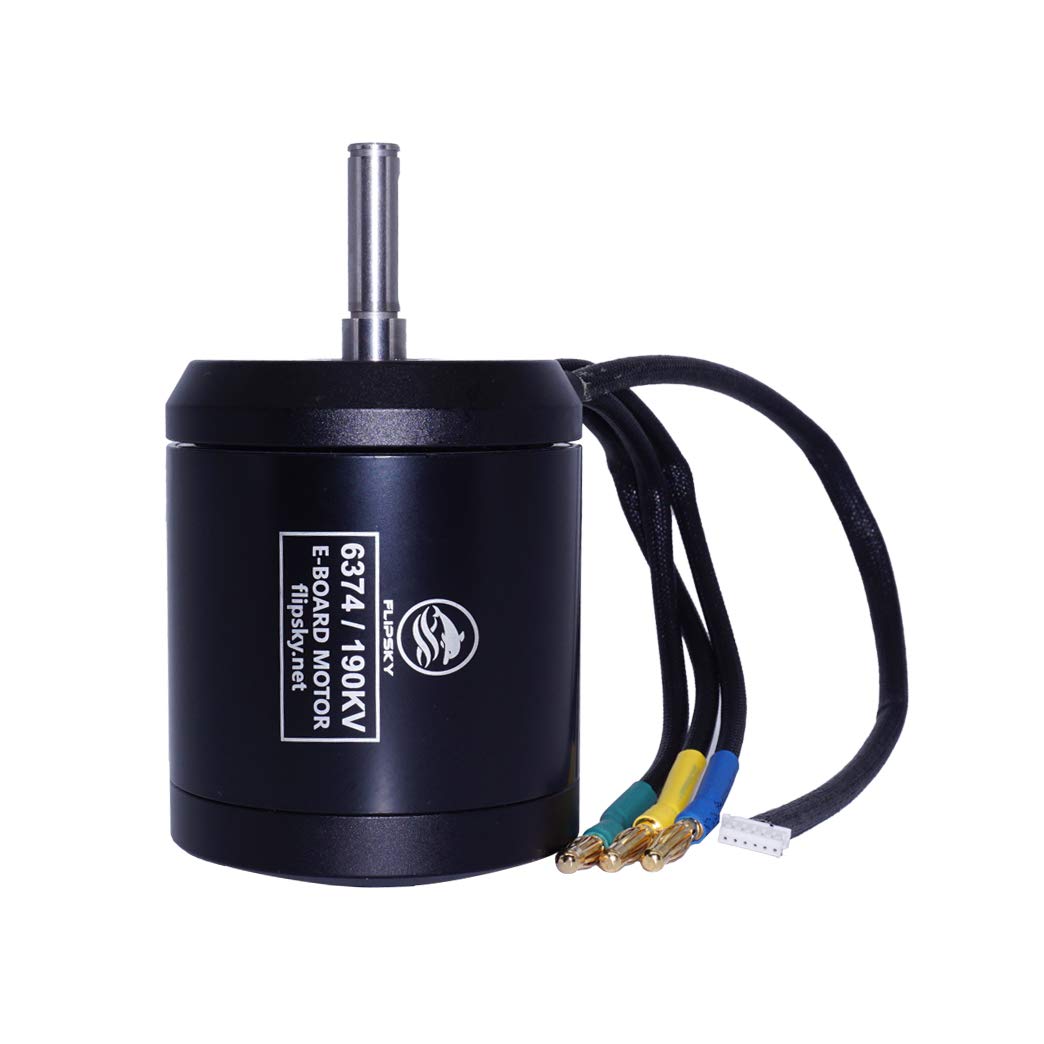

HGLTECH Flipsky BLDC Belt Motor 6374 190KV 3250W for DIY Skate Electric(Without Pulley)
