Description

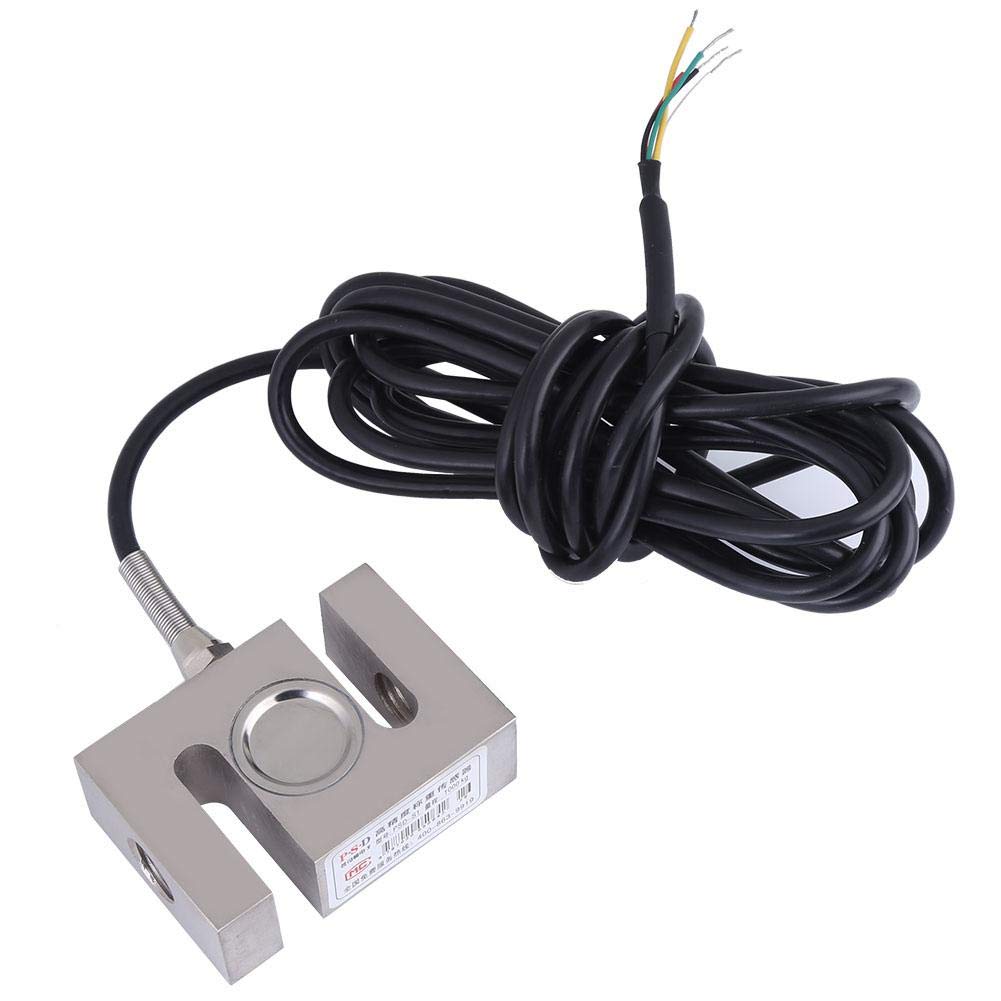

100% brand new and high quality. Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments. S beam design. Precise and stable. Easy installation. Suitable for mixing station, batching machine, asphalt station, etc. Safe and anti-explosive product, can be used in bad environment.
Wire connecting method:
Input: Red wire(+), Black wire(-)
Output: Green wire(+), White wire(-)
Yellow wire(GND)

Specifications:
Material: metal
Type: weighting
Physical properties of materials: conductors
Process: film
Output signal: analog
Protection grade: IP67
Linearity: ±0.02（%F.S.）
Delaying: ±0.02（%F.S.）
Repeatability: ±0.02（%F.S.）
Sensitivity: 2.0mv/v
Drifting: ±0.02%F.S
Input impedance: 350±10Ω
Output impedance: 350±5Ω
Application: Mixing station, batching machine, asphalt station, etc.
Cable length: Approx. 3.4Meter / 11.15ft
Size: Approx. 7.6 x 2.5 x 5.1cm / 2.99 x 0.98 x 2.01inch
Quantity: 1PC
Weight: 686G

Package Included:
1 x Weighting Sensor

Note:
1, Please allow small errors in the dimensions due to accidental imprecise manual measurement.
2, The color of the item you received may be slightly different from that displayed on photos, as the brightness and color varies in different computer screen.
