Input Voltage: 6V~12V DC
Input Current: 2A~5A (related to voltage)

Input Cable Length: About 100mm(red is positive)

Output Cable Length: About 100mm

Arc Discharge Distance: 10mm~20mm

Note:
1, Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity.
2,  The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.
3, The module has high power and inner heat is not easily dissipated, so it can not work continuously for long time (<10 seconds each time).
4, The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can output maximum power. Recommended battery capacity is above 2000mA, or above 4000mA if possible.

Package Includes:

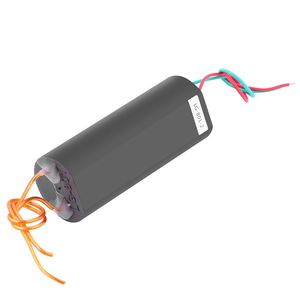

1 x High Voltage Generator
