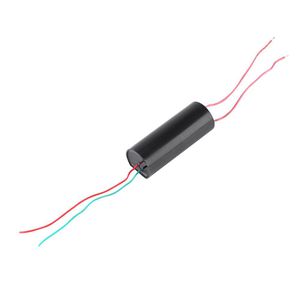

This high-voltage generator module is based on the principle of Tesla coil.
It can release high-voltage pulse output with simple external circuit power supply.
Ideal for students to study electrical experiment, do science experiment, etc.

Specifications:

Size: 64*22*24mm/2.52*0.86*0.94"
Input Voltage: 3.7V-6V DC
Input Current: 0.5A-1A
Input Cable Length: Approx. 11cm/4.33"

High Voltage Type: Pulse DC

Output Voltage: About 50KV

Output Current: 0.5A-1A
Output Cable Length: Approx. 10cm/3.93"

Arc Discharge Distance: 0.5cm/0.19 to 1.5cm/0.59"

Power Supply: 3.7V Li-ion battery, Ni-Cd/Ni-mh battery pack, 4V or 6V lead-acid battery(6V is better)

Note:
1, Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity.
2,  The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.
3, The module has high power and inner heat is not easily dissipated, so it can not work for long time.
4, With less capacity battery, the output voltage is lower. Li-ion battery of 2000mA, 4000mA or more is suggested.

Package Includes:

1 x High Voltage Generator
