Description
Camera
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Shutter Time: | 1/1~1/10,000s
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Digital Zoom: | 16X
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: | Up to 20 users
User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Shutter Time: | 1/1~1/10,000s
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Digital Zoom: | 16X
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: | Up to 20 users
User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User

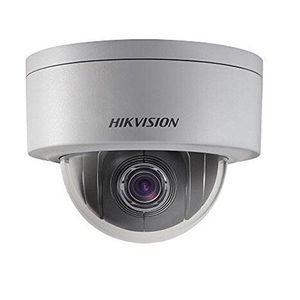

Hikvision 3MP 4X Zoom Network Mini PTZ Repositionable Dome IP Camera DS-2DE3304W-DE 2.8~12mm Day and Night ICR 12V DC or PoE English version support upgrade(H.264 / MJPEG)
Price is below average
Current Price
$192
Average
$219.61
Min Price
$175
Max Price
$406.07
Price dynamics
13%
Description
Camera
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Shutter Time: | 1/1~1/10,000s
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Digital Zoom: | 16X
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: | Up to 20 users
User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Shutter Time: | 1/1~1/10,000s
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Digital Zoom: | 16X
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: | Up to 20 users
User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hey guys in this video I'm going to be unboxing and reviewing this hikvision mini PT's dated camera I'm very excited to be presenting this camera today this is a step above all the other cameras I've been showing on this channel more of a professional-grade camera it's a PTZ camera which means pan tilt and zoom meaning you can mechanically move the camera back and forth up and down and zoom in and out this is an outdoor camera and it cost roughly one hundred and fifty dollars American almost 200 Canadian but not North American version of this camera is available on the great market for a little bit cheaper but it may not be upgradeable I don't mind purchasing these as they are top quality just like all the ink vision products so inside the box we have a drone template manual and the disc always download the latest from the website of course there are some mounting screws for mounting sc
