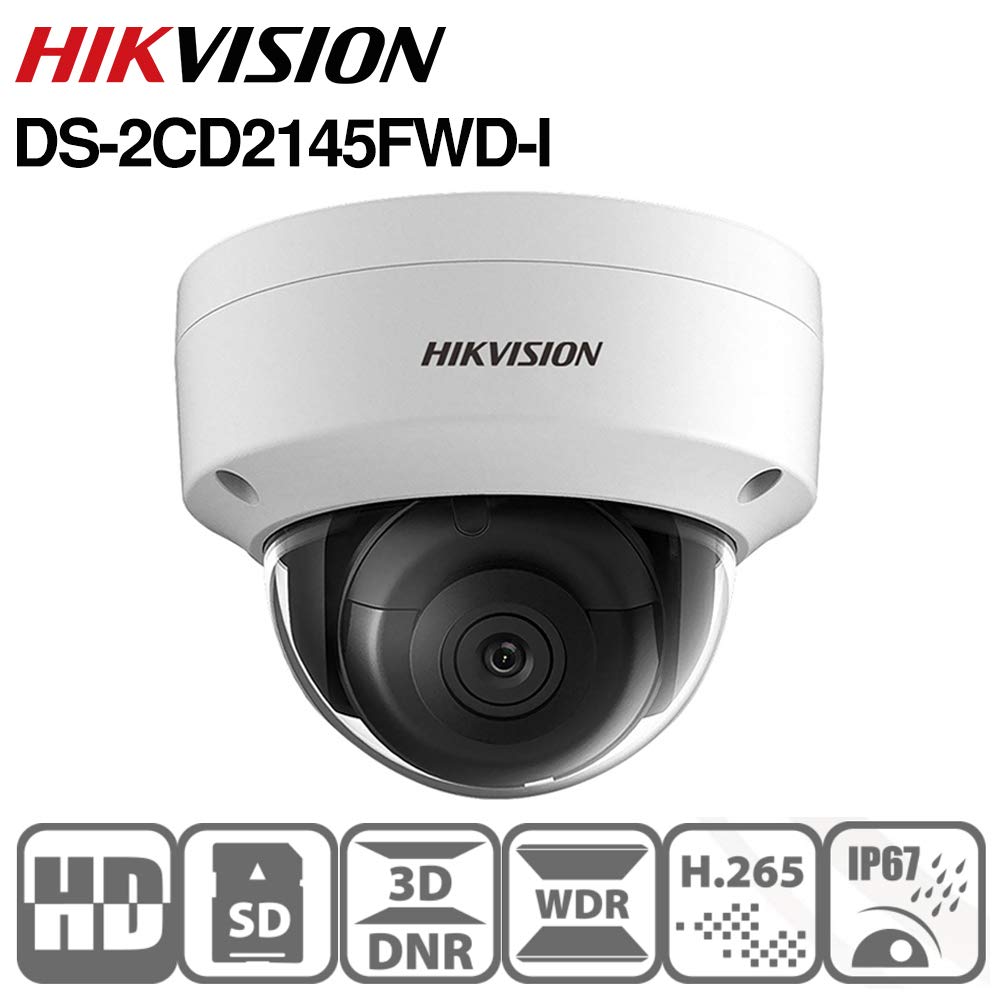

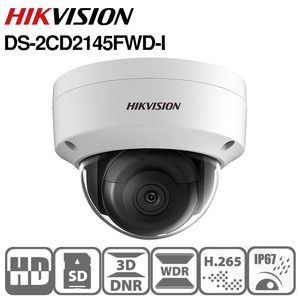

Hikvision 4MP WDR PoE Network Dome Camera - DS-2CD2145FWD-I 2.8mm
Image Sensor:1/3" Progressive Scan CMOS
Min. Illumination:0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time:1/3 s to 1/10,000 s
Adjustment Range:Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression: H.264/MJPEG/H.264+
Video bit rate:32Kbps~16Mbps
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1x alarm I/O *only for -S models
Onboard storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: Max. 5W
IR Range: Up to 30m
Dimensions: Φ111 × 82 (4.4" × 3.2")
Weight:500g (1.1lbs)
