Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:2.8 mm, horizontal field of view: 102°
Lens Mount:M12
Adjustment Range:Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps
Triple Streams:Yes
Network
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:|ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F),Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC ± 25%, 6.2W,PoE(802.3af, class 3), 9W
Dimensions:4.4″ × 3.2″
Weight:1.1 lb

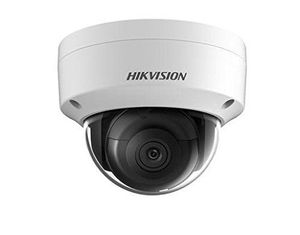

Hikvision 8MP Network Dome Camera DS-2CD2185FWD-I 2.8mm Lens HD Outdoor Security Camera ONVIF PoE H.265+ IP67 Waterproof Support Upgrade
Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:2.8 mm, horizontal field of view: 102°
Lens Mount:M12
Adjustment Range:Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps
Triple Streams:Yes
Network
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:|ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F),Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC ± 25%, 6.2W,PoE(802.3af, class 3), 9W
Dimensions:4.4″ × 3.2″
Weight:1.1 lb
