Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Min. Illumination:Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IRColor: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter: Support
Lens:2.8 mm
Day& Night: IR Cut Filter
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Main Profile/High Profile
Audio Compression:-S: G.711/G.722.1/G.726/MP2L2/PCM
Max. Image Resolution: 2688 × 1520
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage: MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour
Interface
Audio: with -S model:1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support(-S)
Audio I/O: support
Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection

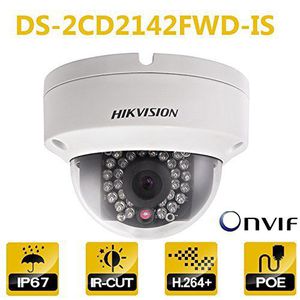

Hikvision Dome IP Camera DS-2CD2145FWD-IS 4MP 2.8Mm Lens PoE Network Security Camera HD 1080P Day/Night IR To 30M Wide Dynamic Range Ip67 IK10 H.264 Onvif English Version
Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Min. Illumination:Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IRColor: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter: Support
Lens:2.8 mm
Day& Night: IR Cut Filter
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Main Profile/High Profile
Audio Compression:-S: G.711/G.722.1/G.726/MP2L2/PCM
Max. Image Resolution: 2688 × 1520
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage: MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour
Interface
Audio: with -S model:1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support(-S)
Audio I/O: support
Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
