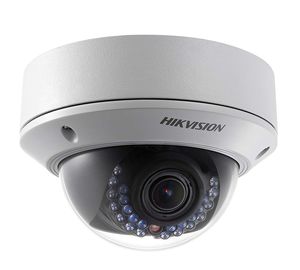

Hikvision 4MP PoE WDR Dome IR Network IP Camera DS-2CD2742FWD-IS 2.8-12mm
Image Sensor: | 1/3" Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.014 lux @ (ƒ/1.4,AGC on); B/W: 0 lux with IR
Shutter time: | 1/3 s to 1/10,000 s
Lens: | 2.8 mm to 12 mm @ ƒ/1.4, motorized lens
Lens Mount: | φ14
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Day& Night: | ICR (Auto/Schedule/Alarm Trigger)
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Max. Image Resolution: | 2688×1520
Frame Rate: | 20 fps (2688 × 1520), 30 fps (1920 × 1080, 1280 × 720)
Image Enhancement: | WDR, BLC, ROI
Network
Network Storage: | NAS (Support NFS,SMB/CIFS), ANR Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio: | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Audio Input: | 1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio Output: | 1-ch 3.5mm audio interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Power Supply: | 12 VDC ± 10%, PoE (802.3af)
Power Consumption: | Maximum 5.5 W
Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, IK10
Weather Proof: | IP66
IR Range: | 30 meters
Dimensions: | Φ140 mm × 99.9 mm (Φ5.51" × 3.94")
Weight: | 1000 g (2.20 lbs)
Hikvision DS-2CD2742FWD-IS 2.8~12mm 4MP Vari-Focal WDR Dome IP Camera IK10 Vandal-Resistant Network Camera IR 30m Day&Night PoE IP67 Support Upgrade
