Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Lens:Horizontal field of view: 114° to 32° ,Vertical field of view: 59° to 18° ,Diagonal field of view: 141° to 36.5°
Lens Mount:φ14
Day& Night:IR Cut Filter
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:Main Profile/High Profile
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080),60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Image Enhancement:BLC/3D DNR/ROI/HLC
ROI:Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System Compatibility:ONVIF (Profile S, Profile G), ISAPI
Interface
Audio:1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output:1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
Environment Noise Filtering:Support
Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Exception Detections:Scene change detection
Recognition:Face Detection

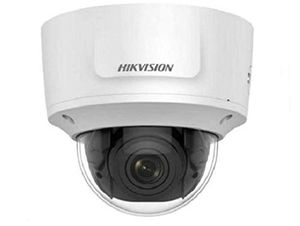

Hikvision DS-2CD2745FWD-IZS 2.8-12mm 4MP IR EXIR Vari-Focal Dome Network Camera Low Light Motorized Lens POE ONVIF H.265+ English Version IP Camera
Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Lens:Horizontal field of view: 114° to 32° ,Vertical field of view: 59° to 18° ,Diagonal field of view: 141° to 36.5°
Lens Mount:φ14
Day& Night:IR Cut Filter
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:Main Profile/High Profile
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080),60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Image Enhancement:BLC/3D DNR/ROI/HLC
ROI:Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System Compatibility:ONVIF (Profile S, Profile G), ISAPI
Interface
Audio:1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output:1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
Environment Noise Filtering:Support
Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Exception Detections:Scene change detection
Recognition:Face Detection
