Description
Camera
Image Sensor:|1/2.8" Progressive Scan CMOS
Effective Pixels:|2048(H)x1536(V)
Signal System:|PAL/NTSC
Day& Night:|ICR
Digital Zoom:|16×
Privacy Masking:|8 privacy masks programmable
Auto Focus:|Auto / Semi-automatic / Manual
Lens
Focal Length:|4.7 to 94mm
Angle of View:|61.4° to 2.9° (wide-tele)
Minimum Working Distance:|10 to 1500mm (wide-tele)
Aperture Range:|F1.6 to F3.5
Pan & Tilt
Pan Range:|360°endless
Tilt Range:|-5°~90° (Auto Flip )
Proportional Zoom:|Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:|300
Patrol:|8 patrols, up to 32 presets for each patrol
Pattern:|4 pattern scans, record time over 10 minutes for each scan
Power loss recovery:|Support
Park Action:|Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Freeze Frame:|Support
IR irradiation angle:|Adjustable by zoom
Alarm
Alarm Actions:|Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet:|10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:|2048 × 1536
Video Compression:|H.265/H.264/MJPEG
No. of Simultaneous Users:|Up to 20 users
General
Power Supply:|12 VDC &POE (802.3at,class4)
Power Consumption:|Max.: 18W (IR light 5W Max.) Working Temperature/Humidity:|Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level:|IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:|Φ169.39mm ×161mm (Φ6.67"×6.34")
Weight (approx.):|Approx. 2.45kg (5.40lb)
Image Sensor:|1/2.8" Progressive Scan CMOS
Effective Pixels:|2048(H)x1536(V)
Signal System:|PAL/NTSC
Day& Night:|ICR
Digital Zoom:|16×
Privacy Masking:|8 privacy masks programmable
Auto Focus:|Auto / Semi-automatic / Manual
Lens
Focal Length:|4.7 to 94mm
Angle of View:|61.4° to 2.9° (wide-tele)
Minimum Working Distance:|10 to 1500mm (wide-tele)
Aperture Range:|F1.6 to F3.5
Pan & Tilt
Pan Range:|360°endless
Tilt Range:|-5°~90° (Auto Flip )
Proportional Zoom:|Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:|300
Patrol:|8 patrols, up to 32 presets for each patrol
Pattern:|4 pattern scans, record time over 10 minutes for each scan
Power loss recovery:|Support
Park Action:|Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Freeze Frame:|Support
IR irradiation angle:|Adjustable by zoom
Alarm
Alarm Actions:|Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet:|10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:|2048 × 1536
Video Compression:|H.265/H.264/MJPEG
No. of Simultaneous Users:|Up to 20 users
General
Power Supply:|12 VDC &POE (802.3at,class4)
Power Consumption:|Max.: 18W (IR light 5W Max.) Working Temperature/Humidity:|Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level:|IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:|Φ169.39mm ×161mm (Φ6.67"×6.34")
Weight (approx.):|Approx. 2.45kg (5.40lb)

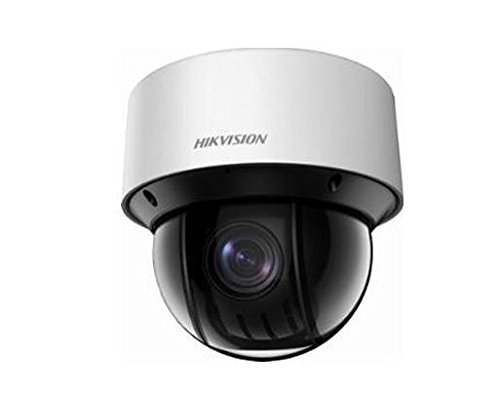

Hikvision DS-2DE4A320IW-DE 4.7-94mm 3MP Network IR mini PTZ Camera Night Version 20X Optical Zoom Outdoor Poe IP66 H.265 1080P Dome Camera
Current Price
$1 472.93
Average
$1 327.2
Min Price
$629.99
Max Price
$1 508.39
Price dynamics
10%
Description
Camera
Image Sensor:|1/2.8" Progressive Scan CMOS
Effective Pixels:|2048(H)x1536(V)
Signal System:|PAL/NTSC
Day& Night:|ICR
Digital Zoom:|16×
Privacy Masking:|8 privacy masks programmable
Auto Focus:|Auto / Semi-automatic / Manual
Lens
Focal Length:|4.7 to 94mm
Angle of View:|61.4° to 2.9° (wide-tele)
Minimum Working Distance:|10 to 1500mm (wide-tele)
Aperture Range:|F1.6 to F3.5
Pan & Tilt
Pan Range:|360°endless
Tilt Range:|-5°~90° (Auto Flip )
Proportional Zoom:|Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:|300
Patrol:|8 patrols, up to 32 presets for each patrol
Pattern:|4 pattern scans, record time over 10 minutes for each scan
Power loss recovery:|Support
Park Action:|Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Freeze Frame:|Support
IR irradiation angle:|Adjustable by zoom
Alarm
Alarm Actions:|Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet:|10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:|2048 × 1536
Video Compression:|H.265/H.264/MJPEG
No. of Simultaneous Users:|Up to 20 users
General
Power Supply:|12 VDC &POE (802.3at,class4)
Power Consumption:|Max.: 18W (IR light 5W Max.) Working Temperature/Humidity:|Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level:|IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:|Φ169.39mm ×161mm (Φ6.67"×6.34")
Weight (approx.):|Approx. 2.45kg (5.40lb)
Image Sensor:|1/2.8" Progressive Scan CMOS
Effective Pixels:|2048(H)x1536(V)
Signal System:|PAL/NTSC
Day& Night:|ICR
Digital Zoom:|16×
Privacy Masking:|8 privacy masks programmable
Auto Focus:|Auto / Semi-automatic / Manual
Lens
Focal Length:|4.7 to 94mm
Angle of View:|61.4° to 2.9° (wide-tele)
Minimum Working Distance:|10 to 1500mm (wide-tele)
Aperture Range:|F1.6 to F3.5
Pan & Tilt
Pan Range:|360°endless
Tilt Range:|-5°~90° (Auto Flip )
Proportional Zoom:|Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:|300
Patrol:|8 patrols, up to 32 presets for each patrol
Pattern:|4 pattern scans, record time over 10 minutes for each scan
Power loss recovery:|Support
Park Action:|Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Freeze Frame:|Support
IR irradiation angle:|Adjustable by zoom
Alarm
Alarm Actions:|Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet:|10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:|2048 × 1536
Video Compression:|H.265/H.264/MJPEG
No. of Simultaneous Users:|Up to 20 users
General
Power Supply:|12 VDC &POE (802.3at,class4)
Power Consumption:|Max.: 18W (IR light 5W Max.) Working Temperature/Humidity:|Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level:|IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:|Φ169.39mm ×161mm (Φ6.67"×6.34")
Weight (approx.):|Approx. 2.45kg (5.40lb)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
