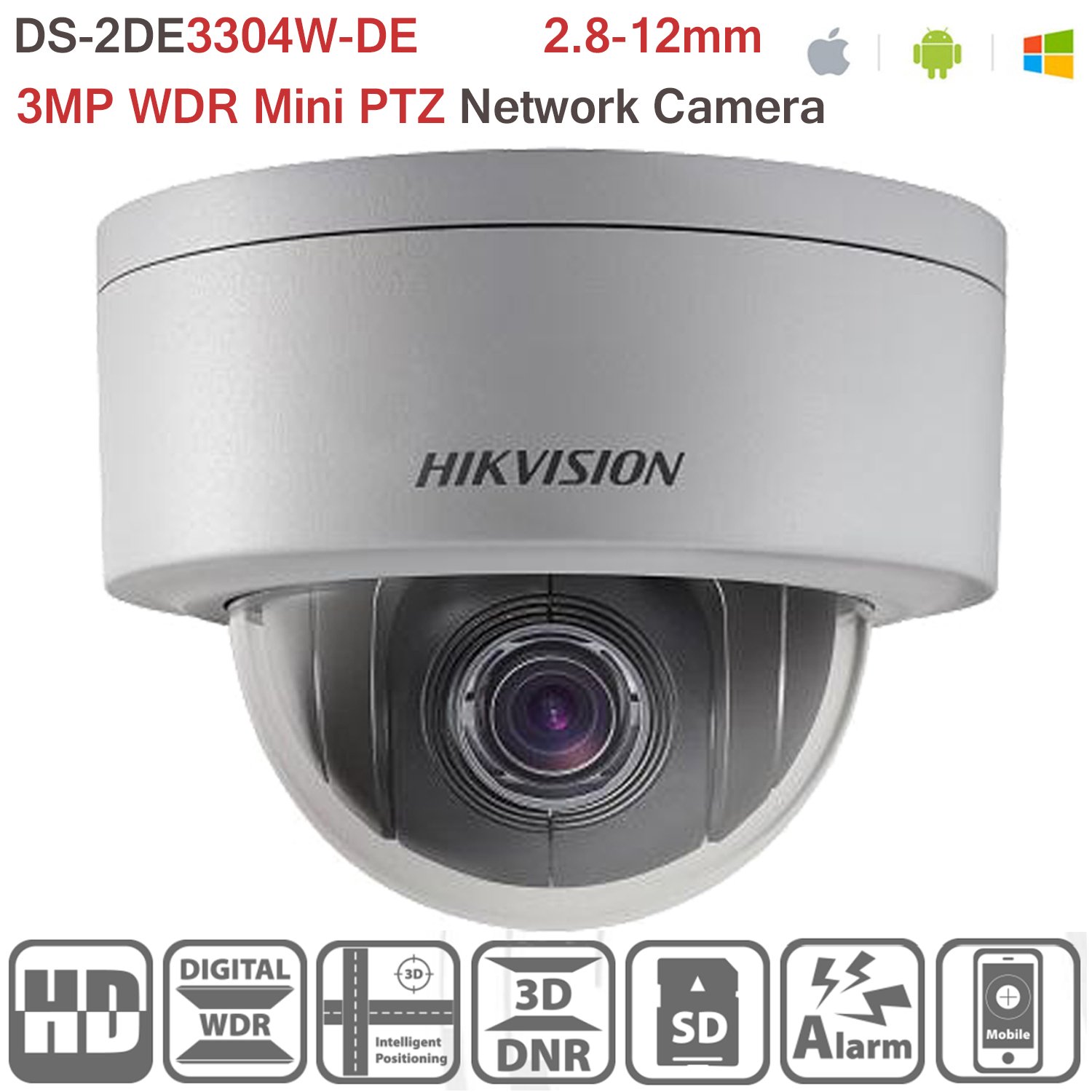

Hikvision DS-2DE3304W-DE 3MP Network Mini PTZ

Image Sensor: | 1/2.8" Progressive Scan CMOS

Effective Pixels: | 2048(H)x1536(V)

Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux

White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

Shutter Time: | 1/1~1/10,000s

Day& Night: | ICR

Digital Zoom: | 16X

Privacy Masking: | 8 privacy masks programmable

Auto Focus: | Auto / Semi-automatic / Manual

Lens

Focal Length: | 2.8~12mm, 4x

Zoom Speed: | Approx.1s(Wide~Tele)

Angle of View: | 105~33.5 degree (Wide~Tele)

Aperture Range: | F1.6 ~F2.7

Pan & Tilt

Pan Range: | Pan: 0~350°

Pan Speed: | Pan Manual Speed: 0.1°~60°/s

Tilt Range: | Tilt: 0°~90°

Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s

Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom

Multiples

Number of Preset: | 300

Power loss recovery: | Support

Park Action: | Preset

PTZ Position Display: | ON/OFF

Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution: | 2048×1536

Video Compression: | H.264 / MJPEG

ROI encoding: | Support 4 areas with adjustable levels

Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722

No. of Simultaneous Users: | Up to 20 users

Dual Stream: | Support

General

Menu Language: | English

Power Supply: | 12V DC or PoE((802.3af, class3)

Power Consumption: | Max. 8W

Dimensions: | Φ140.7×107.2mm

Weight (approx.): | 950g
