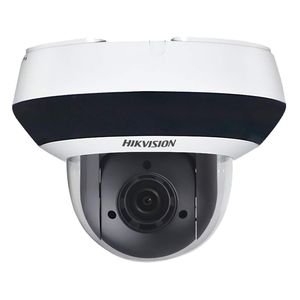

Camera
Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual

Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7

Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s，Preset Speed: 100°/s
Number of Preset: 300

Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom

Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output

Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output

General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.): Approx. 0.53 kg (1.17 lb)
