Description
Semoic，a legal trade mark, has been registered. Only those who are authorized are available to sell items under Semoic. Semoic will bring you joyful shopping experience. Professional Power Amplifier Loudspeaker Accessories
Product key performance with power Stereo Dual
Audio amplifier as the perfect , the sine wave signal without considering the size of the gain of the power amplifier , the input of a certain frequency , the output is not distorted ( no waveform distortion ) , the sine wave signal without noise . ( For details, please read the product parameters )
Key Performance Parameters ICEpower50ASX2
Rated power 1% THD + N, mode, 4, 1kHz 2 x 50 W
Rated power 1%, THD + N, BTL mode, 4, 1kHz 170 W
Maximum power 10%, THD + N, BTL mode, 4, 1kHz 220 W
Rated power 1%, THD + N, mode, 8, 1kHz 2 x 25 W
Rated power 1%, THD + N, BTL mode, 8, 1kHz 100 W
Maximum power 10%, THD + N, BTL mode, 8, 1kHz 130 W
Bandwidth 8,-3dB point, mode 130 kHz
Frequency response , 20Hz-20kHz, 2-8 load range + / - 0.5 dB
Damping factor 8, 100Hz more than the 500
Total harmonic distortion THD + N 1kHz, 1W 0.002 %
Dynamic range SNR , mode 120 dB
Dynamic range SNR , BTL mode 125 dB
colour:green
Material:Metal +pc
size:11 x 8 x 3.5cm
Package Contents:

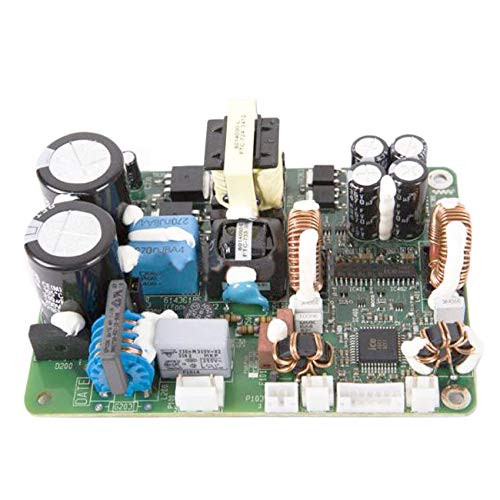

1* ICE50ASX2 Power Amplifier Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
