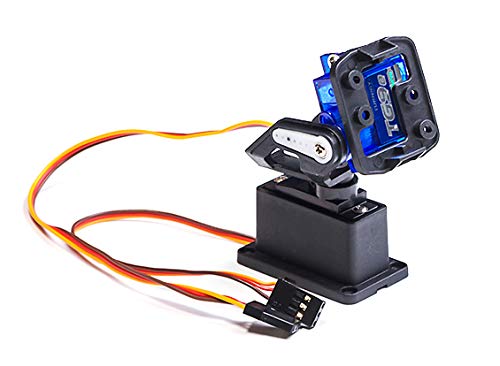

The Quanum Servo-based Pan-Tilt, is a universal pan and tilt mount that was primarily designed for the use with a standard size FPV Camera, (28mm mounting) like the Turnigy HS1177, Runcam/Foxeer FPV cameras. Most other cameras with equivalent mounting holes or brackets can use this Pan and Tilt mount by using the mounting brackets supplied with your camera.

Using this device with a head tracking system allows the camera to follow the movement of your head. For instance, if you turn your head left the camera view moves left. This is a must-have device for your FPV RC plane, RC car, robotics or any other device that requires camera movement.

Features:
• Pan-tilt for FPV cams such as Turnigy HS1177 and Runcam, Foxeer (or similar products)
• Quick and easy assembly kit made of durable plastic

Specs:
Pan angle: 180 degrees (end to end)
Tilt angle: 120 degrees (end to end)

Included:
Plastic pan servo base
Plastic tilt servo mount
Universal FPV Cam mount
Pan servo: Turnigy™ TGY-R5180MG 180 Degree MG Analog Servo 2.0kg / 0.12sec / 12g
Tilt servo: Turnigy TG9e Eco Micro Servo 1.5kg / 0.10sec / 9g
Additional screws and nuts for multiple mounting options
Instruction sheet
