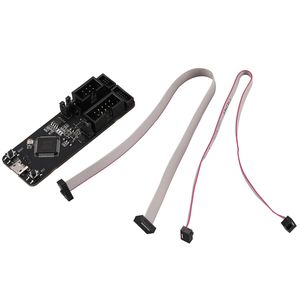

Vaorwne ESP-Prog Jtag Debug & Program Downloader for ESP-Prog Development Board Jtag Debug Program Downloader Compatible for Esp32 /Black metal/73.425.1mm

welcome to another video and the next probe in our mini series about the different hardware debuggers is the esp prog this is reasonably priced from 20 to 30 us dollars and is designed by espressif to be used with the esp32 boards initially but it's actually based on the same ft2232 chipset that we saw in our previous video so can be used with other boards as well so there are two sets of breakouts on the esb prog to suit standard 0.1 inch connectors as well as the 0.0 5-inch connectors making it easy to connect using jumper leads or if you wish small ribbon cables for a more integrated design on your own board for example the esp prog also has two jumpers for the power supply so each of the two interfaces available and this allows you to switch between a 3 volt or 5 volt supply from that interface for the esp32 these should both be left at 3.3 volts however you can use this with other
