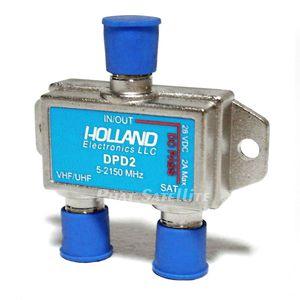

1 Piece Holland Diplexer 5-2150Mhz Switch Digital Analog Satellite DISH Network DirecTV Compatible Residential Commercial usage Precision machine threaded F port and PCB Design 2 amp Power Passing

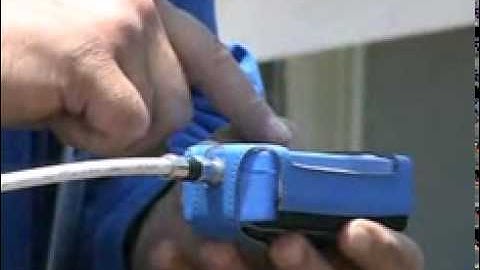

one unique feature to swim L&B is the way you read the signal level while aligning the ODU though the aligning and peaking is done exactly the same way with any kak u ODU you need to connect your signal level meter and keep the lmv powered that's done using the ASL or by the use of a power passing spreader on some signal level meters we'll look at the ASL first the ASL looks like a four-way splitter but it's very different the input port at the top is connected directly to the swim L&B the bottom-left port is 18 volts out the next port is power in this is where the power supply cable is connected you'll see the power ports all have red inserts in the connectors the next port is labeled 119 and passes the signal from the satellite it's a 1:19 orbital slot the right bottom port is label 101 and it passes the same up from the satellite at 101 degrees here's how it works connect the input f
