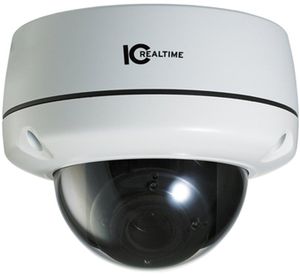

IC Realtime EL-470 Indoor/Outdoor I-Sniper PIXIM Full-Size IR Dome Camera, PIXIM 1/3" High Sensitivity Digital Sensor, Effective Pixels 768(H)x540(V), 2.8mm-12mm Varifocal Auto Iris Lens
The EL-470 is an elite level advanced feature set camera with long-range infrared illumination and super high resolution performance. The camera utilizes the I-Sniper chipset, which is a high-performance imaging sensor with impressive 720HTVL resolution. I-Sniper cameras deliver clear, detailed images night or day and even under challenging lighting conditions.
Key Features- PIXIM 1/3" High Sensitivity Digital Sensor
- 720H TVL Resolution
- Wide Dynamic Range
- IR illumination up to 100'
- 16x Digital Zoom
- Digital Image Stability
- IP66 Weatherproof and Vandal Resistant
- Dual Power AC 24V / DC 12V
- Effective Pixels: 768(H)x540(V)
- Scanning System: 2:1 Interlaced
- Sync: Internal
- Min. Illumination: 0.1Lux/50IRE@F1.2 (Color)/0.01 Lux/50IRE (B/W) (Sens-Upx64)
- S/N Ratio: > 52dB
- Video Output: 1.0Vp-p; 75Ω
- Electronic Shutter Speed: 1/60sec~1/120,000sec
- Lens: 2.8mm-12mm Varifocal Auto Iris
- IR Distance: 75-100'
- White Balance: ATW/Outdoor/Indoor/Manual/AWC (1700K~11000K)
- Sens-Up: Auto/Off (Selectable 2x~512x)
- Motion Detection: On/Off (8 Programmable zones)
- Gain Control: Low/High/Off
- Day & Night: Color/BW/Auto
- Privacy Masking: Off/On (12 programmable zones)
- Digital Zoom: On/Off (1x~16x)
- Digital Image Stability On/Off
- Sharpness: On/Off (Level adjustable)
- Flip/Mirror: On/Off
- Operating Temperature: 14°F~122°F
- Storage Temperature: -14°F~122°F
- Humidity: 95% RH
- Dimensions Φ5.75"x4.13"
- Weight: 3.09lbs
