Description

Hc-12 wireless serial module is a multichannel embedded wireless transceiver module with 433.4-473.0HMz working frequency and 100 communication channel,long transmission distance up to 1000m in the open air.Stamp holes edge design support SMD installing easy to embed into the application devices. On-board SMA(ANT1) and solder joint(ANT2)two type antenna connecting port, you can install the SMD coaxial antenna, helical antenna or DIY 433MHz antenna perfect for DIY short distance wirless data transmission system such as wireless sensor, smart building safeguard system, automation data acquisition,etc.

Specifications:
Working Voltage: 3.2-5.5V(If the module work long time and the power supply voltage over 4.5V please concatenate a 1N4007 diode)
Default Connunication Distance(approx.): 600m(Maximum conmuincation distance up to 1000m, 5000bps baud rate)
Idle Current:16mA
Working Frequency: 433.4-473MHz
Transmitting Power(max.):100mW
Default Factory Setting: working mode FU3, baud rate 9600bps, communication channel CH001(433.4M)
Size:27.8 X 14.4 X 4mm

Package Included:
2X SI4463 433Mhz Wireless Serial Port Module Transceiver

Working Mode:
1.FU1: the idle current is 3.6mA, serial rate:1200bps 2400bps 4800bps 9600bps 19200bps 38400bps 57600bps 115200bps and the air baud rate is 250000bps, transmission delay time is 4~80mS 2.FU2: the idle current is 80μA, serial rate:1200 bps,2400 bps and 4800 bps and the air baud rate is 250000bps, transmission delay time is 500mS(There are some bugs in this mode, kindly suggest not use this mode)
3.FU3: the idle current is 16mA, serial rate(air baud rate): 1200bps 2400bps(5000bps),4800bps 9600bps(15000bps), 19200bps 38400bps(58000bps),57600bps 115200bps(236000bps),transmission delay time is 4~80mS.

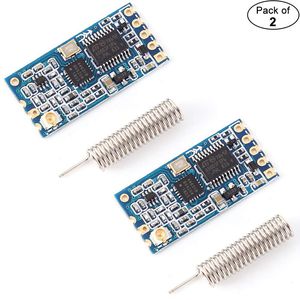

Icstation HC-12 SI4463 433Mhz Wireless Serial Module with Antenna Replace Bluetooth 100mW Remote 1000M (Pack of 2)

Price is below average

Current Price

$10.99

Average

$11.42

Min Price

$10.99

Max Price

$12.59

Price dynamics

4%

Description

Hc-12 wireless serial module is a multichannel embedded wireless transceiver module with 433.4-473.0HMz working frequency and 100 communication channel,long transmission distance up to 1000m in the open air.Stamp holes edge design support SMD installing easy to embed into the application devices. On-board SMA(ANT1) and solder joint(ANT2)two type antenna connecting port, you can install the SMD coaxial antenna, helical antenna or DIY 433MHz antenna perfect for DIY short distance wirless data transmission system such as wireless sensor, smart building safeguard system, automation data acquisition,etc.

Specifications:
Working Voltage: 3.2-5.5V(If the module work long time and the power supply voltage over 4.5V please concatenate a 1N4007 diode)
Default Connunication Distance(approx.): 600m(Maximum conmuincation distance up to 1000m, 5000bps baud rate)
Idle Current:16mA
Working Frequency: 433.4-473MHz
Transmitting Power(max.):100mW
Default Factory Setting: working mode FU3, baud rate 9600bps, communication channel CH001(433.4M)
Size:27.8 X 14.4 X 4mm

Package Included:
2X SI4463 433Mhz Wireless Serial Port Module Transceiver

Working Mode:
1.FU1: the idle current is 3.6mA, serial rate:1200bps 2400bps 4800bps 9600bps 19200bps 38400bps 57600bps 115200bps and the air baud rate is 250000bps, transmission delay time is 4~80mS 2.FU2: the idle current is 80μA, serial rate:1200 bps,2400 bps and 4800 bps and the air baud rate is 250000bps, transmission delay time is 500mS(There are some bugs in this mode, kindly suggest not use this mode)
3.FU3: the idle current is 16mA, serial rate(air baud rate): 1200bps 2400bps(5000bps),4800bps 9600bps(15000bps), 19200bps 38400bps(58000bps),57600bps 115200bps(236000bps),transmission delay time is 4~80mS.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
