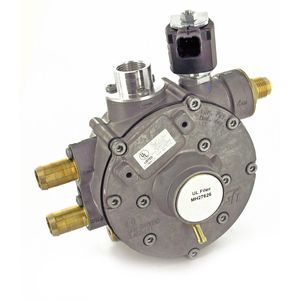

The IMPCO A7-242 generic LPG regulator is a single-stage vaporizer that converts LPG from liquid to vapor at a reference outlet pressure and is suitable for use with liquid propane gas (LPG) forklift motors. It comes with an LPG shut-off valve, a 30 micron filter, and a pressure relief device. The regulator has MAP referencing, coolant heating, and an optional LPG absolute pressure reference. Tools for installation are sold separately.
| Specifications | |
|---|---|
| Fuel Type | LPG |
| Inlet Pressure (maximum) | 29 to 290psi (200-2000kPa) |
| Burst Pressure Inlet | 979 psi (6750 kPa) |
| Outlet Pressure | 11.6 to 12.3psi (80-85kPa) |
| Operating Temperature Range | 4 to +257 degrees F (-20 to +125 degrees C) |
| Voltage | 12V DC, 11W |
IMPCO Technologies manufactures fuel systems, engines, power units, and components for industrial and automotive applications. The company, founded in 1958 and headquartered in Santa Ana, CA, meets International Organization for Standardization (ISO) standard 9001:2008.
What's in the Box?
- Regulator
- Filter kit
- Outlet fitting service kit
- Screw kit with three screws
- Inlet fitting with O-ring
- Drain plug and O-ring kit
- Lock-off assembly
IMPCO A7-242 Generic LPG Regulator
The IMPCO A7-242 generic LPG regulator is a single-stage vaporizer that converts LPG from liquid to vapor at a reference outlet pressure and is suitable for use with liquid propane gas (LPG) forklift motors. It comes with an LPG shut-off valve, a 30 micron filter, and a pressure relief device. The regulator has MAP referencing, coolant heating, and an optional LPG absolute pressure reference. Tools for installation are sold separately.
| Specifications | |
|---|---|
| Fuel Type | LPG |
| Inlet Pressure (maximum) | 29 to 290psi (200-2000kPa) |
| Burst Pressure Inlet | 979 psi (6750 kPa) |
| Outlet Pressure | 11.6 to 12.3psi (80-85kPa) |
| Operating Temperature Range | 4 to +257 degrees F (-20 to +125 degrees C) |
| Voltage | 12V DC, 11W |
IMPCO Technologies manufactures fuel systems, engines, power units, and components for industrial and automotive applications. The company, founded in 1958 and headquartered in Santa Ana, CA, meets International Organization for Standardization (ISO) standard 9001:2008.
What's in the Box?
- Regulator
- Filter kit
- Outlet fitting service kit
- Screw kit with three screws
- Inlet fitting with O-ring
- Drain plug and O-ring kit
- Lock-off assembly
