Description
Specification
Front Panel Dimension: DIN 48mm(W)X48mm(L)
Power Supply Voltage: 12/24V 50/60Hz
Operating voltage range: 85~110% Rated voltage
Character: PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ±0.2%FS 0.1ºC(<1000ºC);1ºC(≥1000ºC)
Period of Sampling: 0.5S
Temperature Compensation: 0-50ºC
Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Weight: Approx. 140g
Environmental Conditions: -10~55ºC(no icy or condensation), RH 35-85% Humidity
Storage Temperature: -25~65ºC(no icy or condensation)
Data Storage: 10year Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple Temperature Sensing For Temperature Controller
Temperature rang :0-400 C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass
Pacakge:
1x Inkbird ITC-106VL Controller
1x Mounting bracket
1 x K sensor
1x Manual
Front Panel Dimension: DIN 48mm(W)X48mm(L)
Power Supply Voltage: 12/24V 50/60Hz
Operating voltage range: 85~110% Rated voltage
Character: PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ±0.2%FS 0.1ºC(<1000ºC);1ºC(≥1000ºC)
Period of Sampling: 0.5S
Temperature Compensation: 0-50ºC
Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Weight: Approx. 140g
Environmental Conditions: -10~55ºC(no icy or condensation), RH 35-85% Humidity
Storage Temperature: -25~65ºC(no icy or condensation)
Data Storage: 10year Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple Temperature Sensing For Temperature Controller
Temperature rang :0-400 C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass
Pacakge:
1x Inkbird ITC-106VL Controller
1x Mounting bracket
1 x K sensor
1x Manual

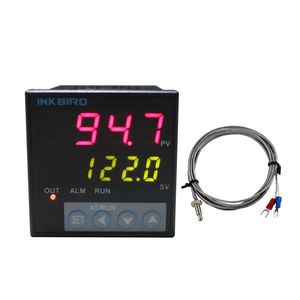

Inkbird ITC-106VL PID Temperature Thermostat Controllers F and C 24V with K Sensor for Sous Vide Home Brewing Oven Incubator
Current Price
$29.99
Average
$26.89
Min Price
$15.95
Max Price
$29.99
Price dynamics
10%
Description
Specification
Front Panel Dimension: DIN 48mm(W)X48mm(L)
Power Supply Voltage: 12/24V 50/60Hz
Operating voltage range: 85~110% Rated voltage
Character: PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ±0.2%FS 0.1ºC(<1000ºC);1ºC(≥1000ºC)
Period of Sampling: 0.5S
Temperature Compensation: 0-50ºC
Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Weight: Approx. 140g
Environmental Conditions: -10~55ºC(no icy or condensation), RH 35-85% Humidity
Storage Temperature: -25~65ºC(no icy or condensation)
Data Storage: 10year Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple Temperature Sensing For Temperature Controller
Temperature rang :0-400 C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass
Pacakge:
1x Inkbird ITC-106VL Controller
1x Mounting bracket
1 x K sensor
1x Manual
Front Panel Dimension: DIN 48mm(W)X48mm(L)
Power Supply Voltage: 12/24V 50/60Hz
Operating voltage range: 85~110% Rated voltage
Character: PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ±0.2%FS 0.1ºC(<1000ºC);1ºC(≥1000ºC)
Period of Sampling: 0.5S
Temperature Compensation: 0-50ºC
Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Weight: Approx. 140g
Environmental Conditions: -10~55ºC(no icy or condensation), RH 35-85% Humidity
Storage Temperature: -25~65ºC(no icy or condensation)
Data Storage: 10year Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple Temperature Sensing For Temperature Controller
Temperature rang :0-400 C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass
Pacakge:
1x Inkbird ITC-106VL Controller
1x Mounting bracket
1 x K sensor
1x Manual
