Description

Feature：
●Plug and play design, easy to use.
●Support reading with Centigrade or Fahrenheit.
●Maximum output load: 1100W(110V).
●Temperature calibration, Compressor delay protection for refrigeration control.
●High and low temperature alarms are available.
●Dual relay output, be able to connect with refrigeration and heating equipment at the same time.
●Dual display window, be able to display measured temperature and set temperature at the same time.
●Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.
●WIFI smart controller supports both IOS & Android，WIFI supports 2.4GHz Wi-Fi router, free APP "InkbirdSmart" which is able to monitor temperature at any time.

Technical Parameters:
●Power: Voltage: 100~230Vac，50/60Hz, Current: 10A, Max Wattage: 1200W(110Vac), 2200W(220Vac)
● Type of temperature probe: R25℃=100KΩ±1%, R0℃=26.74~27.83KΩ,B25/85℃=3435K±1%
● Temperature measurement range:-40℃~100℃/-40℉~212℉
● Temperature display accuracy: 0.1℃ /℉(<100℃/℉), 1℃/℉(>=100℃/℉)
● Display unit: Celsius ℃ or Fahrenheit ℉
● Ambient temperature: -20℃~60℃/-4℉~140℉
● Storage environment: temperature:0℃~60℃/32℉~140℉;
humidity: 20~80%RH(Unfrozen or condensation )
● Warranty:Controller:2 years warranty ；Temperature Probe:1 year warranty

Package Included:

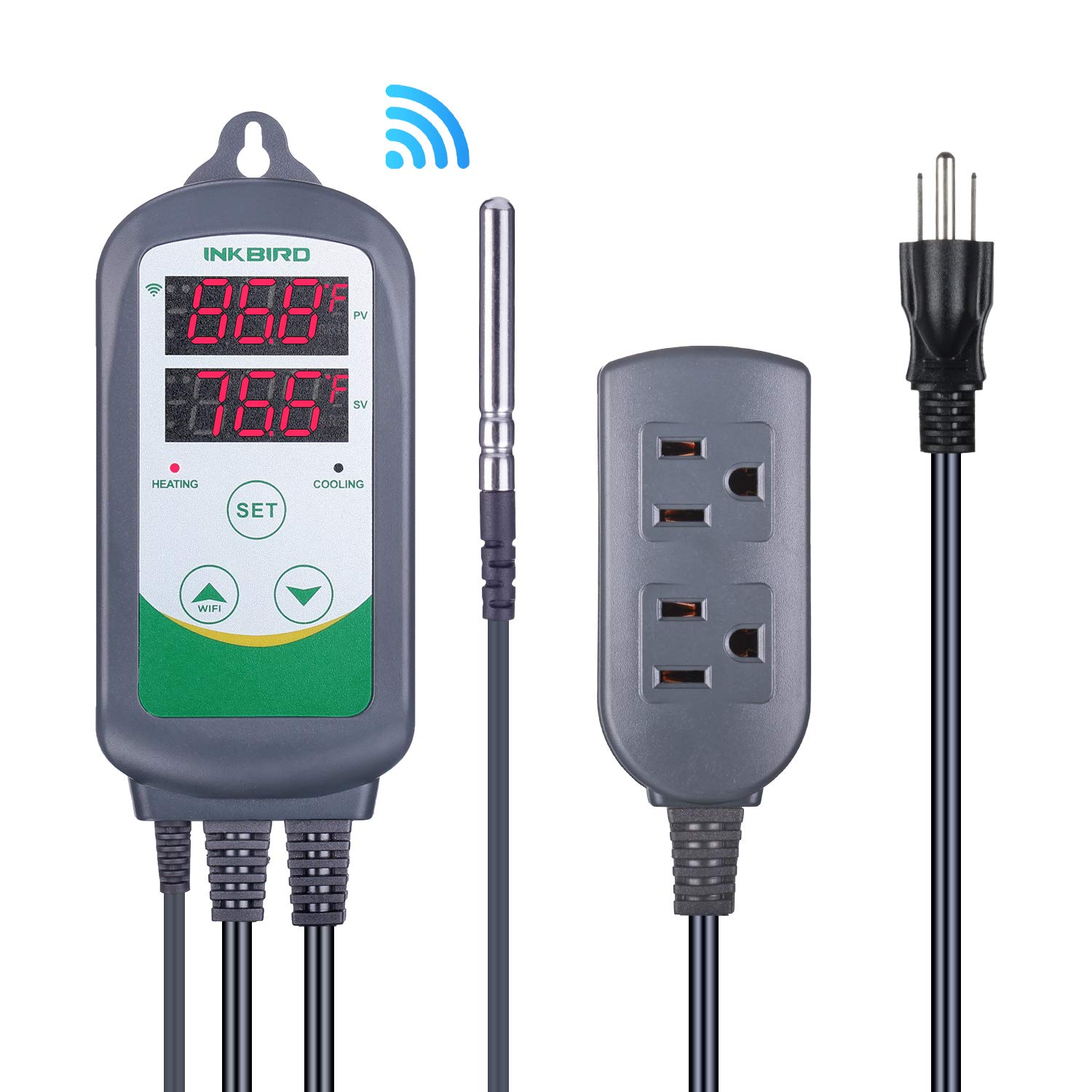

1 x WIFI ITC-308 Temperature Controller
1 x Manual
