Description

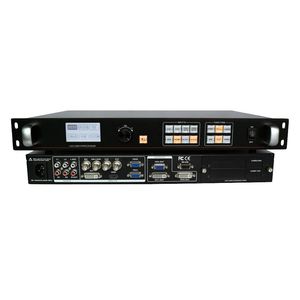

ISV-HDVP2-SDI LED video processor can supports up to 7 video inputs (1 SDI, 2 CVBS, 1 HDMI, 1 DVI, 2 VGA) and 3 video outputs(2 DVI, 1VGA), 2 audio inputs and 1 audio output, it can achieve multiple channels video&audio seamlessly switching, custom up to 2.6 megapixels output resolution, support PIP, one key black, freeze, preset powerful video processing functions
Features
1, 6 channels video input
2, Seamless video switching
3, Custom up to 2.6 megapixels output resolution
4, Pre-switching
5, PIP
6, One key black
7, Freeze
8, PART and FULL fast switching
9, Equal and unequal splicing
10,Preset
Specifications
DVI Inputs
1 DVI-I, standard DVI1.0
VESA, PC to 1920x1200, HD to 1080P@60Hz
HDMI Inputs
1 HDMI-A, standard HDMI1.3
VESA, PC to 1920x1200, HD to 1080P@60Hz
VGA Inputs
2 DB15, standard RGB, Hsync, Vsync
VESA, PC to 1920x1200, HD to 1080P@60Hz
SDI Inputs
1 BNC, SD-SDI, HD-SDI, 3G-SDI
Up to 1080P@60Hz
CVBS Inputs
2 BNC, standard PAL, NTSC, PAL-M/N, SECAM
Audio Inputs
2 RCA, standard double channels analog audio
Audio Output
1 RCA
DVI/VGA Outputs
Connector 2 DVI-I, 1 VGA DB15
Signal Standard DVI: DVI1.0, VGA
Resolutions:
1024×768@60Hz,1280×720@60Hz/50Hz,1280×1024@60Hz,1440×900@60Hz,1600×1200@60Hz,1680×1050@60Hz,1920×1080@60Hz/50Hz,1920×1200@60Hz,1024×1280@60Hz, 1024×1920@60Hz,1536×1536@60Hz,2048×640@60Hz,2048×1152@60Hz,2304×1152@60Hz,2560×816@60Hz
Whole machine weight: 3.0kg
Case size(LWH) : 253mmx440mmx56mm
Packing size(LWH) : 515mmx110mmx355mm
Power Supply: AC100V ~ AC240V 50/60Hz
Power consumption: 18W
Temperature : 0℃～50℃
Storage humidity: 10%～90%
