Description
Specification:
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 12dbi
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type: Vertical
Antenna Length(cm): 15cm
Cable Length(cm): 46cm (1.5Ft)
Cable Type: RG174
Connector Type:SMA plug
Mounting: suctorial
Housing: Black
Weight: 43g
Storage Temperature: -45℃ to +75℃
Operating Temperature: -45℃ to+75℃
Instructions:
Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible
12dbi High-gain antenna Increases the signal strength and performance of 3G Wireless Network
Installation Tips:
Antenna should be mounted vertically to maximize performance
Antenna should not be mounted against metal
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 12dbi
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type: Vertical
Antenna Length(cm): 15cm
Cable Length(cm): 46cm (1.5Ft)
Cable Type: RG174
Connector Type:SMA plug
Mounting: suctorial
Housing: Black
Weight: 43g
Storage Temperature: -45℃ to +75℃
Operating Temperature: -45℃ to+75℃
Instructions:
Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible
12dbi High-gain antenna Increases the signal strength and performance of 3G Wireless Network
Installation Tips:
Antenna should be mounted vertically to maximize performance
Antenna should not be mounted against metal

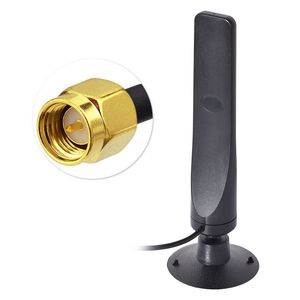

wlaniot GSM 3G 4G LTE Antenna (12dBi High Gain SMA Connector 18 inches Cable) Mobile Hotspot/WiFi Router/USB Modem/Mobile Phone Signal Booster/4g Security Camera
