Description

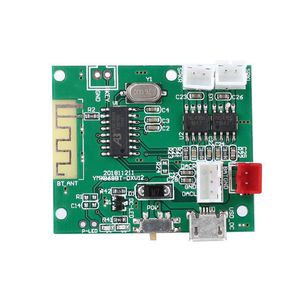

Material: circuit board
Power: 2*5W
Bluetooth version: 5.0
Bluetooth name: YMX-868BT
Connection password: 0000
Voltage: DC3.7-5V (cannot be higher than 5V)
Current: 1.5A-2A or more
Weight: 11g
Size: 4.1*3.7*1 cm
Note:
1) Red 2P seat BAT is connected to the power supply positive DC 3.7V to 5V+, GND is connected to the negative pole; white 2P seat L-O-/L-O+ is connected to the speaker 1, white 2P seat R-O-/R-O+ is connected to the speaker 2
2) Working voltage lithium battery 3.7V, or regulated power supply DC4.5-5V, current (600-700MA when connected to a speaker; 1.5-2A for two speakers). Lithium-powered speaker with 4 ohms 3W+3W, voltage regulator Power 5V speaker with 4 ohms 5W+5W. If the current is not enough, there will be a jump or Bluetooth instability, the motherboard will always restart or the sound quality is not good / broken / distortion; the voltage can not be higher than 5V, otherwise it will damage the main chip and amplifier IC and related components
Power: 2*5W
Bluetooth version: 5.0
Bluetooth name: YMX-868BT
Connection password: 0000
Voltage: DC3.7-5V (cannot be higher than 5V)
Current: 1.5A-2A or more
Weight: 11g
Size: 4.1*3.7*1 cm
Note:
1) Red 2P seat BAT is connected to the power supply positive DC 3.7V to 5V+, GND is connected to the negative pole; white 2P seat L-O-/L-O+ is connected to the speaker 1, white 2P seat R-O-/R-O+ is connected to the speaker 2
2) Working voltage lithium battery 3.7V, or regulated power supply DC4.5-5V, current (600-700MA when connected to a speaker; 1.5-2A for two speakers). Lithium-powered speaker with 4 ohms 3W+3W, voltage regulator Power 5V speaker with 4 ohms 5W+5W. If the current is not enough, there will be a jump or Bluetooth instability, the motherboard will always restart or the sound quality is not good / broken / distortion; the voltage can not be higher than 5V, otherwise it will damage the main chip and amplifier IC and related components
Haihuic Bluetooth 5.0 Receiver Board Stereo Audio Amplifier 2x5W Mini Amp Module 3.7-5V for DIY Wireless Speaker
