Description

Specifications of VMA1120: Frequency Response: Measured at 2.83 Vrms into rated load impedance at any output , 4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB , 70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB. Total Harmonic Distortion (THD): Power Amp Output: <0.5%, 20 Hz to 20 kHz. Signal to Noise Ratio: >76 dB. Input Impedance: Mic: 400 Ohms , Line: 20k Ohms , RCA: 50k Ohms. Phantom Power: 27 VDC. Crosstalk: -70 dB. Nominal Input Voltages: Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz. Minimum Load Impedance: Low Impedance Output: 4 Ohms , 70 V Output: 40 Ohms , 100 V Output: 80 Ohms. Operating Temperature: 32°F to 95°F. Humidity: 95% RH. Storage Temperature: -4°F to 185°F. Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches. Product Weight: 20.2 Lbs.

Specifications of CONTROL 16C/T-BK : Frequency Range (-10 dB): 62 Hz - 20 kHz. Power Capacity (at low-Z) : 100 Watts Continuous Program Power , 50 Watts Continuous Pink Noise. Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only). Frequency Response (±3 dB): 96 Hz - 15 kHz. Nominal Sensitivity: 91 dB. Nominal Coverage Angle: 110° conical coverage. Directivity Factor (Q): 7.8. Directivity Index (DI): 8.2 dB. Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak. Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting). Crossover Network : 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver. LF Driver: 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil. HF Driver: 19 mm (3/4 in), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide. Input Connector: Removable locking 4-pin connector with screw-down terminals.. Max wire size 12 AWG (2.5 mm2).

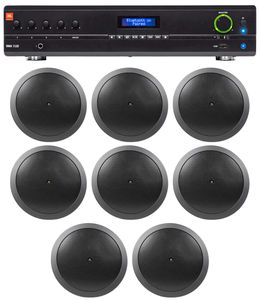

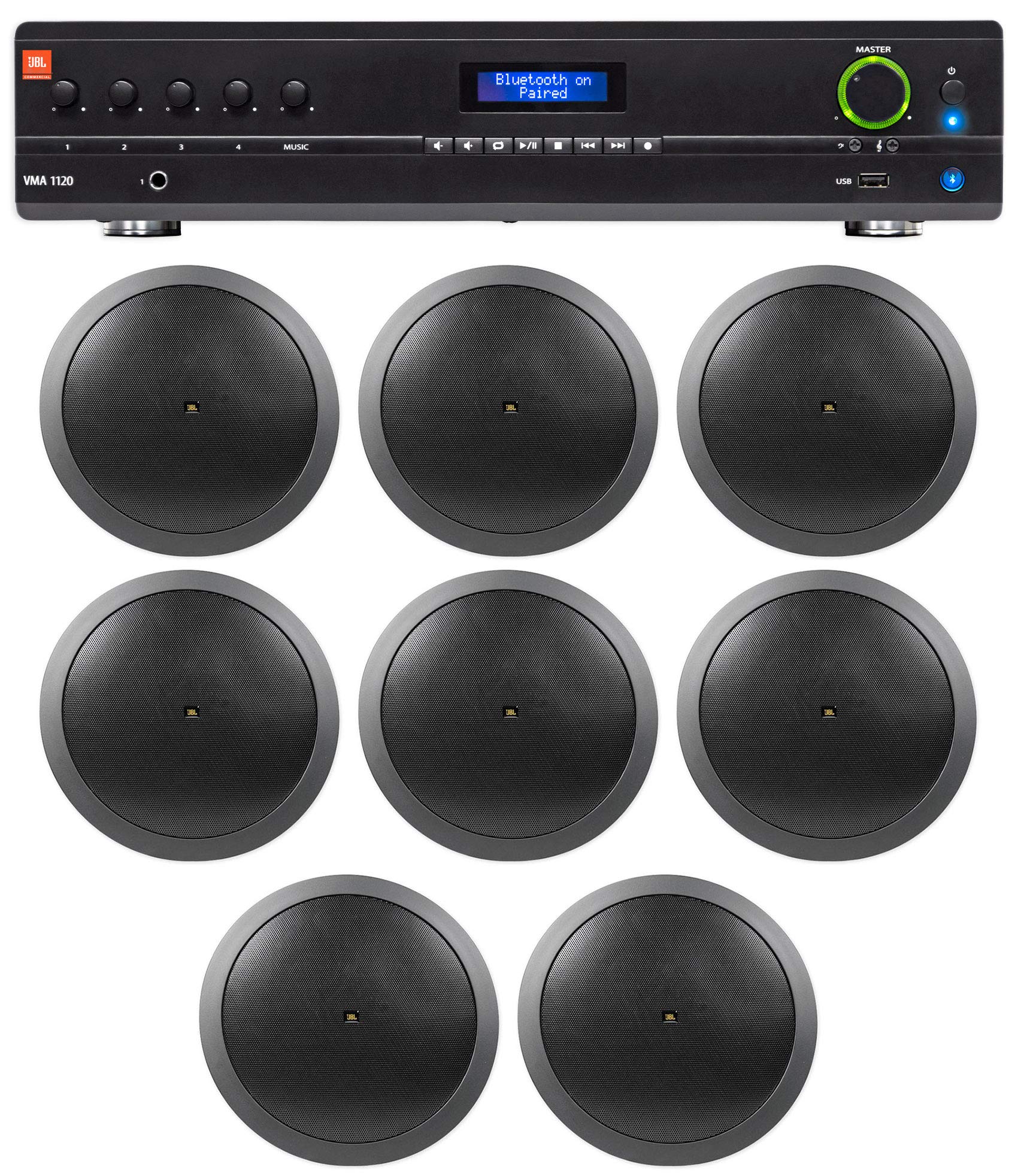

JBL VMA1120 Commercial/Restaurant 120W 70v Amplifier+(8) JBL Black 6.5" Speakers

Get price

Current Price

$1 259.95

Average

$1 217.95

Min Price

$1 133.96

Max Price

$1 259.95

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

hey guys thanks for joining us for another edition of pro acoustics Tech Talk I'm Nathan I'm Colton and today we are gonna show you guys a little bit about basic 70 volt wiring and how to wire up a basic 70 volt system [Music] all right Nathan so what do we have here what's going on with all these wires and kind of kind of got me through this process of how 70 volt kind of works sure sure so we found the average person does not know what 70 volt audio is they don't know what 8 ohm or low impedance audio is so we wanted to just kind of do a real basic diagram or a way to show you guys of how a 70 volt system could work for you in your application we can kind of picture here a small restaurant a small office a small you know bar with an outdoor patio or with a you know speakers in the restroom anywhere where in this particular case where you might need to zones of audio without getting to
