Description
About Smraza:
We are a leading manufacturer of electronic components for Arduino and Raspberry Pi. We have a professional engineering team dedicated to providing tutorials and support to help you get started.
If you have any technical questions, please feel free to contact our support staff via Amazon.

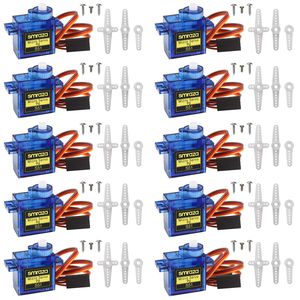

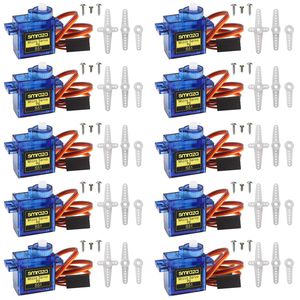

Smraza 10 Pcs 9G Micro Servo Motor for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and Arduino Experiments
Product Specification
1. Apply Environmental Condition:
Operating Temperature Range: -10℃~50℃
Operating Voltage Range: 4.8V~6.0V
2. Dimensions:
23mm*12.2mm*29mm(L*W*H)
3. Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )
4. Mechanical Specification:
Limit angle:200°± 1°
Weight:9 ± 1 g
Connector wire gauge:#28 PVC
Connector wire length:250 ± 5 mm
Spline:21T
Horn type:Cross,star and bar-type
Excessive play:≤0.5°
5. Control Specification:
Control system:Change the pulse width
Amplifier type:Analog controller
Operating trave:l120°±10° (900→2100 μsec)
Left&Right travelling Angle deviation:≤ 6°
Centering deviation:≤ 1°
Neutral position:1500 μsec
Dead band width:7 μsec
Rotating direction:Counter Clockwise (900→2100μsec)
Pulse width range:900→2100 μsec
Maximum travel:About 120° (900→2100 μsec)
We are a leading manufacturer of electronic components for Arduino and Raspberry Pi. We have a professional engineering team dedicated to providing tutorials and support to help you get started.
If you have any technical questions, please feel free to contact our support staff via Amazon.
Smraza 10 Pcs 9G Micro Servo Motor for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and Arduino Experiments
Product Specification
1. Apply Environmental Condition:
Operating Temperature Range: -10℃~50℃
Operating Voltage Range: 4.8V~6.0V
2. Dimensions:
23mm*12.2mm*29mm(L*W*H)
3. Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )
4. Mechanical Specification:
Limit angle:200°± 1°
Weight:9 ± 1 g
Connector wire gauge:#28 PVC
Connector wire length:250 ± 5 mm
Spline:21T
Horn type:Cross,star and bar-type
Excessive play:≤0.5°
5. Control Specification:
Control system:Change the pulse width
Amplifier type:Analog controller
Operating trave:l120°±10° (900→2100 μsec)
Left&Right travelling Angle deviation:≤ 6°
Centering deviation:≤ 1°
Neutral position:1500 μsec
Dead band width:7 μsec
Rotating direction:Counter Clockwise (900→2100μsec)
Pulse width range:900→2100 μsec
Maximum travel:About 120° (900→2100 μsec)
Smraza 10 Pcs SG90 9G Micro Servo Motor Kit for RC Robot Arm Helicopter Airplane Car Boat Control, Arduino Project
Current Price
$17.99
Average
$16.97
Min Price
$14.35
Max Price
$21.99
Price dynamics
6%
Description
About Smraza:
We are a leading manufacturer of electronic components for Arduino and Raspberry Pi. We have a professional engineering team dedicated to providing tutorials and support to help you get started.
If you have any technical questions, please feel free to contact our support staff via Amazon.
Smraza 10 Pcs 9G Micro Servo Motor for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and Arduino Experiments
Product Specification
1. Apply Environmental Condition:
Operating Temperature Range: -10℃~50℃
Operating Voltage Range: 4.8V~6.0V
2. Dimensions:
23mm*12.2mm*29mm(L*W*H)
3. Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )
4. Mechanical Specification:
Limit angle:200°± 1°
Weight:9 ± 1 g
Connector wire gauge:#28 PVC
Connector wire length:250 ± 5 mm
Spline:21T
Horn type:Cross,star and bar-type
Excessive play:≤0.5°
5. Control Specification:
Control system:Change the pulse width
Amplifier type:Analog controller
Operating trave:l120°±10° (900→2100 μsec)
Left&Right travelling Angle deviation:≤ 6°
Centering deviation:≤ 1°
Neutral position:1500 μsec
Dead band width:7 μsec
Rotating direction:Counter Clockwise (900→2100μsec)
Pulse width range:900→2100 μsec
Maximum travel:About 120° (900→2100 μsec)
We are a leading manufacturer of electronic components for Arduino and Raspberry Pi. We have a professional engineering team dedicated to providing tutorials and support to help you get started.
If you have any technical questions, please feel free to contact our support staff via Amazon.
Smraza 10 Pcs 9G Micro Servo Motor for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and Arduino Experiments
Product Specification
1. Apply Environmental Condition:
Operating Temperature Range: -10℃~50℃
Operating Voltage Range: 4.8V~6.0V
2. Dimensions:
23mm*12.2mm*29mm(L*W*H)
3. Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )
4. Mechanical Specification:
Limit angle:200°± 1°
Weight:9 ± 1 g
Connector wire gauge:#28 PVC
Connector wire length:250 ± 5 mm
Spline:21T
Horn type:Cross,star and bar-type
Excessive play:≤0.5°
5. Control Specification:
Control system:Change the pulse width
Amplifier type:Analog controller
Operating trave:l120°±10° (900→2100 μsec)
Left&Right travelling Angle deviation:≤ 6°
Centering deviation:≤ 1°
Neutral position:1500 μsec
Dead band width:7 μsec
Rotating direction:Counter Clockwise (900→2100μsec)
Pulse width range:900→2100 μsec
Maximum travel:About 120° (900→2100 μsec)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
