Description:

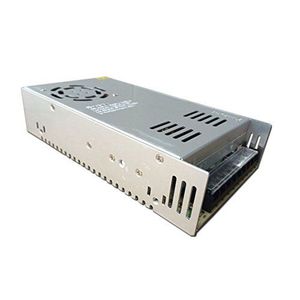

1. The JoyNano 24V 20A Switching power supply is great electronic devices that operate on 24VDC and require less than 480W of power.
2. Constant voltage output to ensure the stability of the power supply. Efficient work and low temperature.
3. Input voltage 110V/230V is selected by switch. Before power on please check input voltage avoiding damage.
4. Safety Protection: Overvoltage protection, short circuit protection and overload protection. Hiccup mode, recovers automatically after faulty condition is removed.
5. Upgraded Glass-Fiber Board offers high performance of electrical insulation. Premium Transformer converts incoming line voltage to desired output load easily.
Specifications:
Input Voltage: AC110V/ 220V
Output Voltage: 24V DC
Output Current: 20A
Power: 480W Max
Screw Terminal Number: 9
Cooling: By Built-in DC Fan.
Shell material: Aluminum case
Dimension: 215 x 110 x 50 mm (L x W x H) 8.5 x 4.3 x 1.9 inch
Net Weight: 860g 1.9lb
Wiring:
L, N, GND: AC power input
+V: DC power output "+"
-V: DC power output "-"
+V / ADJ: fine adjustment of output voltage
Environmental Requirement:
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Usage:
Switching Power Supply Driver for 3D Printer, LED Strip Light, CCTV Surveillance, Industrial Automation, CNC Stepper/Servo System, DSP controller, LED Decorative Lighting, LED Display, Stage Lighting, Communications, Network, etc.
Notice:
1. In-door use only.
2. Professional Installation of qualified electrician is highly recommended.
Package Included:
1 x JoyNano 480W Switch Power Supply 24V 20A
