Description

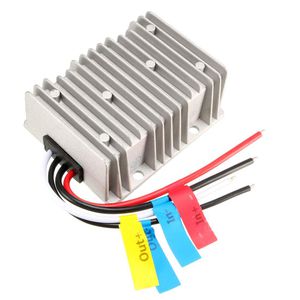

Product Name: Waterproof Voltage Converter Regulator DC 24V to DC 48V 10A 480W
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC24V to DC 48V step-up converter, efficiency up to 96%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 24V
* Input Voltage Range: 20V-36V DC
* Output voltage: DC48V 10A
* Output Rated Power: 480W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 600W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 150mV
* No-load Current: 30mA
* Total Size: 100*80*39mm(L*W*H)
* Weight: 500g
Package included:
1 x DC 24V to DC 48V 10A Voltage Converter
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC24V to DC 48V step-up converter, efficiency up to 96%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 24V
* Input Voltage Range: 20V-36V DC
* Output voltage: DC48V 10A
* Output Rated Power: 480W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 600W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 150mV
* No-load Current: 30mA
* Total Size: 100*80*39mm(L*W*H)
* Weight: 500g
Package included:
1 x DC 24V to DC 48V 10A Voltage Converter
uxcell Voltage Converter Regulator DC/DC DC 24V Step-Up to DC 48V 10A 480W Power Boost Transformer Waterproof
