For more details check out www.jpegcamera.com. For questions, technical support and custom orders, please email us at info@jpegcamera.com or call 1-800-837-5859.
Image Sensor: CMOS MT9V011
Pixels: 300K Pixels
Image Resolution: 640 x480 (VGA), 320 x 240 (QVGA) (Default), 160×120
Image Compression: JPEG
Video: NSTC default, custom option PAL per request
Serial Interface output: RS232
Baud Rate: 38400bps (Default), 9600bps, 57600bps, and 115200bps
Focal Length: 3.6mm (Default) (custom options: 1.8mm/2.5mm/6.0mm/8.0mm/12mm/16mm)
Angle of View (FOV): 90° (Default) (custom order options: 170°/150°/120°/60°/45°/30°/15°)
Power Supply: DC 5V (Default)
Current consumption: Typical: 75mA, Max: 250mA (when IR LED's are on).
Cable Length: 1Meter (Default).
Infrared LED's: 12pcs 850nm infrared LED's.
Night image: black and white.
Night vision range: 10 meters (33ft).
IR-Cut filter: Not available.
White Balance: Automatic
Exposure: Automatic
Auto Gain Control: Automatic
Operating Temperature: -4℉-140℉
Storage Temperature: -22℉-158℉
Protocol: VC0706
Dimension: 51mm(L) x 51mm(W) x 64mm(H)
Weight: 165g ( 5.8OZ)
Connector: DB9 female connector
Housing P/N: WPH01
Waterproof: IP66

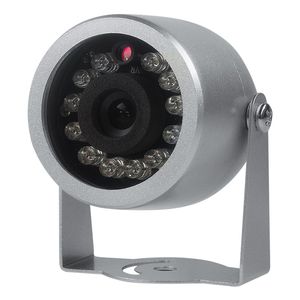

Spinel Waterproof Serial JPEG Camera with IR LEDs for Night Vision RS232 Output, P/N:SC03MPD series, offer custom solutions, equal to Adafruit camera
For more details check out www.jpegcamera.com. For questions, technical support and custom orders, please email us at info@jpegcamera.com or call 1-800-837-5859.
Image Sensor: CMOS MT9V011
Pixels: 300K Pixels
Image Resolution: 640 x480 (VGA), 320 x 240 (QVGA) (Default), 160×120
Image Compression: JPEG
Video: NSTC default, custom option PAL per request
Serial Interface output: RS232
Baud Rate: 38400bps (Default), 9600bps, 57600bps, and 115200bps
Focal Length: 3.6mm (Default) (custom options: 1.8mm/2.5mm/6.0mm/8.0mm/12mm/16mm)
Angle of View (FOV): 90° (Default) (custom order options: 170°/150°/120°/60°/45°/30°/15°)
Power Supply: DC 5V (Default)
Current consumption: Typical: 75mA, Max: 250mA (when IR LED's are on).
Cable Length: 1Meter (Default).
Infrared LED's: 12pcs 850nm infrared LED's.
Night image: black and white.
Night vision range: 10 meters (33ft).
IR-Cut filter: Not available.
White Balance: Automatic
Exposure: Automatic
Auto Gain Control: Automatic
Operating Temperature: -4℉-140℉
Storage Temperature: -22℉-158℉
Protocol: VC0706
Dimension: 51mm(L) x 51mm(W) x 64mm(H)
Weight: 165g ( 5.8OZ)
Connector: DB9 female connector
Housing P/N: WPH01
Waterproof: IP66
