KP-H700V
Eyepiece: 0.5X
Zoom Objective: 0.7X-4.5X
Optical digital amplification: 32X-205X
Working distance: 90-110mm
Rise and fall range: 275mm
Focusing range: 60mm
Base Plate size: 380X250X16mm
Bracket diameter: 50mm
Universal regulating frame: Diameter of column:25mm,transverse arm length:310mm hanger diameter:24.7mm
Output Interface: HDMI,USB
Sensor: 1/2.33 inch 16 million pixel CMOS sensor
Pixel size: 1.335 µmx1.335µm
HDMI output: 4608*3456(TF Card),1920x1080(TF Card)
USB output: 1920*1080/30 1280*720/30 640*480/30
Lens interface: C
Exposure: Automatic/manual/one key exposure
Exposure compensation: Support
White balance: Automatic/manual/one button white balance to support RGB tunable
Storage: Maximum support for 64GB
Input voltage: DC 5V-12V
Underline: Support 8 lines,color,thickness and position can be adjusted
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
LED ring light: Inside diameter size 60mm,The input voltage AC90-240V,The output power 4.5w,Light color white,Lamp bead 56
Packing List :
1、0.7X-4.5X zoom lens *1
2、Focus rack *1
3、Pillar stand and Base Plate *1
4、LED ring light *1
5、16 mp microscope camera *1
6、HDMI high definition line *1
7、USB data line *1
8、The camera power adapter *1
9、CD drive *1
10、Universal regulating frame *1
11、Remote control *1
Note:
1、Due to transportation reasons, the remote control does not contain a battery.
2、Prices quoted on all our products do not include customs duties.
3、This product is mainly HDMI output, USB connected computer can only display images, can not adjust parameters; remote control can not be used when connecting computer; using remote control to adjust parameters needs to be in HDMI connected monitor state.

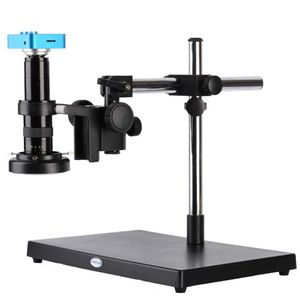

KOPPACE 32-205X,16MP Full HD 1080P 60FPS Industry Digital Microscope,Universal regulating Frame,Industrial Inspection Microscope
KP-H700V
Eyepiece: 0.5X
Zoom Objective: 0.7X-4.5X
Optical digital amplification: 32X-205X
Working distance: 90-110mm
Rise and fall range: 275mm
Focusing range: 60mm
Base Plate size: 380X250X16mm
Bracket diameter: 50mm
Universal regulating frame: Diameter of column:25mm,transverse arm length:310mm hanger diameter:24.7mm
Output Interface: HDMI,USB
Sensor: 1/2.33 inch 16 million pixel CMOS sensor
Pixel size: 1.335 µmx1.335µm
HDMI output: 4608*3456(TF Card),1920x1080(TF Card)
USB output: 1920*1080/30 1280*720/30 640*480/30
Lens interface: C
Exposure: Automatic/manual/one key exposure
Exposure compensation: Support
White balance: Automatic/manual/one button white balance to support RGB tunable
Storage: Maximum support for 64GB
Input voltage: DC 5V-12V
Underline: Support 8 lines,color,thickness and position can be adjusted
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
LED ring light: Inside diameter size 60mm,The input voltage AC90-240V,The output power 4.5w,Light color white,Lamp bead 56
Packing List :
1、0.7X-4.5X zoom lens *1
2、Focus rack *1
3、Pillar stand and Base Plate *1
4、LED ring light *1
5、16 mp microscope camera *1
6、HDMI high definition line *1
7、USB data line *1
8、The camera power adapter *1
9、CD drive *1
10、Universal regulating frame *1
11、Remote control *1
Note:
1、Due to transportation reasons, the remote control does not contain a battery.
2、Prices quoted on all our products do not include customs duties.
3、This product is mainly HDMI output, USB connected computer can only display images, can not adjust parameters; remote control can not be used when connecting computer; using remote control to adjust parameters needs to be in HDMI connected monitor state.
in next 2 weeks
