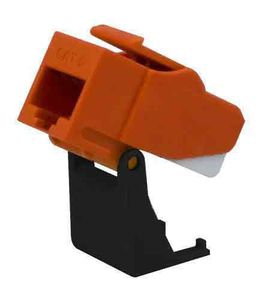

Legrand - On-Q WP3560OR Snap & Go Cat 6 Keystone Connector, Orange

the following step-by-step demonstration will show you how easy it is to terminate the on cue snap and go rj45 connector eliminating the need for a punch down tool these snap and go products will speed up your installations and make your tool belt just a little lighter so begin take the brown wire pair and the green wire pair and insert them through the holes on the top of the wiring cap next lay the blue wire pair and the orange wire pair along the bottom of the wiring cap use the diagram on the sides of the wiring cap to split the wires and insert them into the correct positions on the wiring cap using your fingernail the diagram on the side of the wiring cap shows both the t56 8a and t56 8 be wiring standards once the wires are in position trim the wire as close to the side of the wiring cap as possible next insert the wiring cap into the rj45 connector finally push the cover of the
