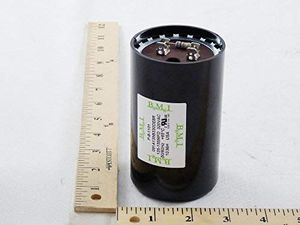

Lennox Corporation 66083 CAPAC 135-155 MFD 320V ROUND

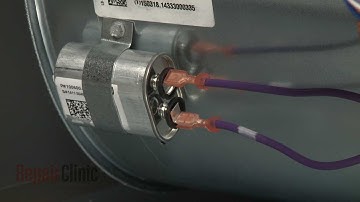

repair clinic encourages you to perform this procedure safely in this video we will show one or more of these icons to alert you when to use caution before you replace the run capacitor in your furnace first turn off the power to the furnace unthread the retaining knobs securing the upper access panel and remove the panel use a quarter inch socket or nut driver to unthread the mounting screws securing the lower access panel lift the panel up to remove to insure the run capacitor is discharged place a screwdriver with an insulated handle across the terminals avoid touching the screwdriver blade now disconnect the wires from the terminals use the quarter inch socket or nut driver to loosen the screws securing the retaining strap slide the old capacitor out install the new run capacitor by positioning it in the retaining strap then tighten the screw to secure connect the wires to the termi
