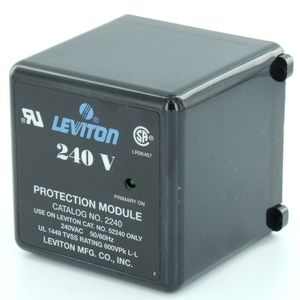

Leviton 2240 240 VAC, 50/60 Hz Max, Transient Voltage Surge Suppression Module, Used for Hi Panel Protection System, Continuous Voltage 250 VAC

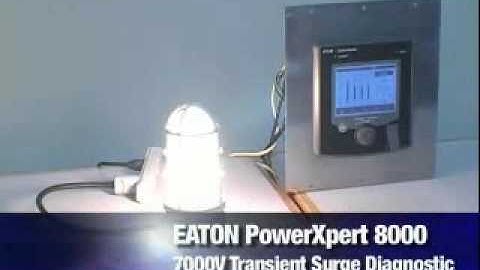

we're now going to demonstrate the ability of the power expert meter to capture common power quality events what we're going to demonstrate right now is a transient voltage surge what we have here is we have a transient voltage surge generator capable of generating transients of up to 10,000 volts and 10,000 amps connected to this transient voltage surge generator is a light bulb and connected in parallel is the power expert meter I'm now going to induce a transient onto the system our power expert meter will record this event the surge waveform has been captured first of all by this Lucroy oscilloscope this oscilloscope is a very expensive piece of equipment with that has the necessary speed to capture fast transient events worth over $20,000 we can see the ring waveform here is a common example of damaging transients now if we look at the power expert 8000 screen we can see that the p
