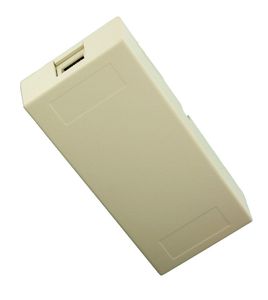

Leviton 40298-SBI 8P8C x 8P8C Screw Terminal, Surface Mount Jack with Shorting Bar, Ivory

how to install a surface mount jack materials required surface mount jack or conductor white cable prep tool cable prep tool wire stripper needle nose pliers screwdriver robertson green 2 pair cat 3 UTP solid cable white step 1 cut the specified length of 2 pair cat 3 UTP solid cable and insert into the cable prep tool rotate in one direction one to two turns to score the cable jacket step 2 remove the cable jacket exposing the four insulated conductors and a nylon thread pull string use the needle nose pliers and pull string to expose the required length of wire remove the cable jacket and pull string using the cable prep tool step 3 remove the tips of the insulated conductors to the required length using the wire stripper then use the needle nose pliers to bend the tips of the exposed conductors step 4 remove the cover of the surface Jack using the screwdriver feed the UTP cable throu
