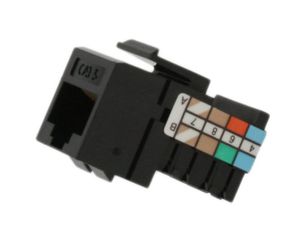

Leviton 41108-RE5 Category 5 QuickPort Connector, CAT 5, Black

today we are going to learn how to terminate a leviton 5g 110 series jack the materials required for this installation are caf iv cable a leviton 5g 110 jack an impact punch down tool technician scissors and a cable stripper the first step is to remove the jacket with the cable stripper removing the jacket exposes the pairs take your scissors and cut the string that's inside the jacket then begin to fan out the pairs you'll notice that they are color-coded once you have properly fanned out your pairs firmly push them into the idc connector match the color code on the conductors to the color code printed on the jack the color code shows the order of conductors you'll notice that each conductor has a color orange white orange green white green etc match the colored conductors to the color code and place in the appropriate idc slot for most applications choose the 568b color code take your
