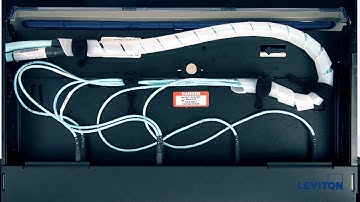

to begin mount your optics HD enclosure in your rack or cabinet using the four screws provided you're retrofitting and optics ultra are 1000 eye enclosure tag and disconnect all existing fiber-optic patch cords and trunk cables then remove the existing optics standard tray and replace it with the optics HD retrofit tray to install an optics evolve NPP cassette adapter plate or blank plate slide in the cassette or plate at the front of the enclosure using the receiving guides on the tray install cassettes in the bottom row first next remove the cover and route all the required backbone and horizontal cables to the rear of the enclosure secure the cables to the first Lance point and then the opposite Lance point on the rear of the tray Levitan recommends 36 inch breakouts for all trunk assemblies since 20 inches of breakout is required from the first tie-down point on the tray to provide
