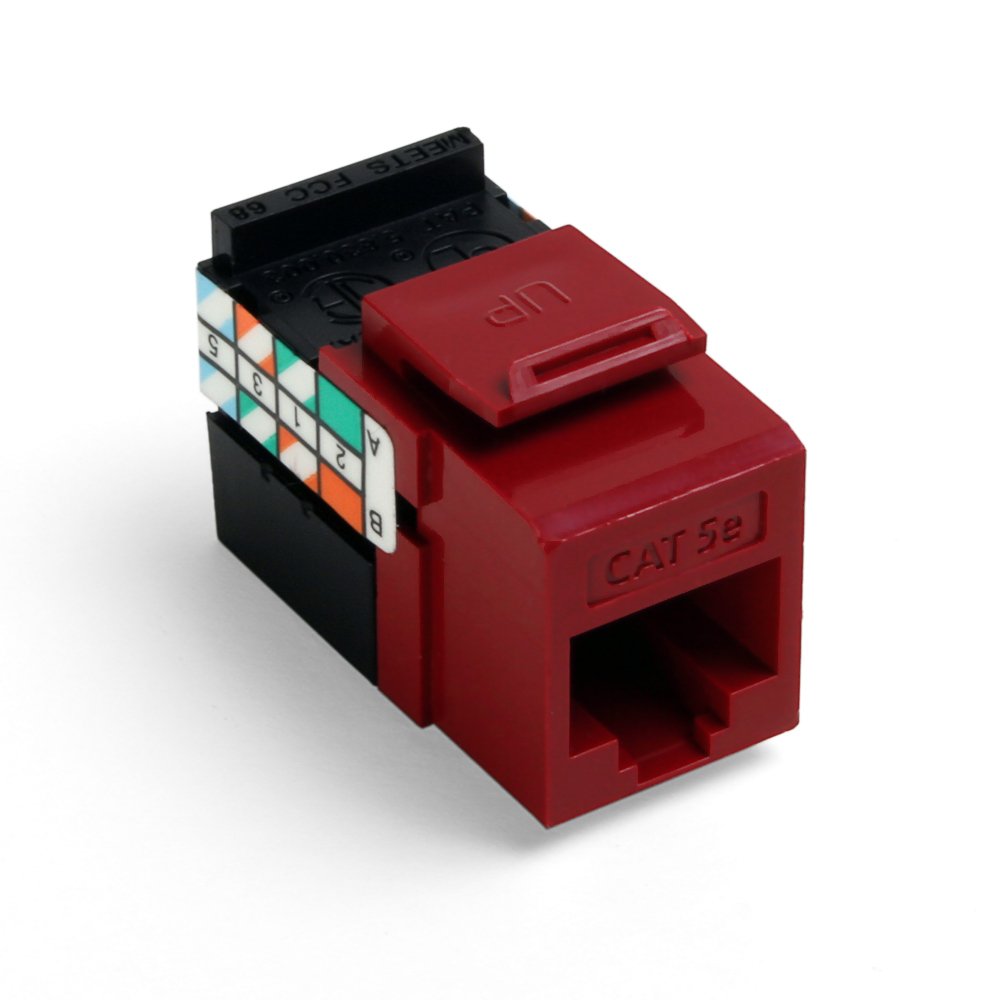

Leviton 5G108-RR5 GigaMax 5E QuickPort Connector, Cat 5E, Red

hi this is mark from show me cables and today we are going to learn how to terminate a Levitan 5g 108 series cat 5e keystone jack the materials I need for this installation are cat 5e cable a Levitan 5g 108 series Jack an impact punch down tool rotary cable stripper and technician scissors the first step is to remove the jacket with the cable strippers take your technician scissors and clip the internal string then you can begin to fan out the four pairs you'll notice that they are color-coded once you have your conductors all the way untwist it you can insert them into the IDC connector firmly push them into the IDC connector match the color code on the conductors to the color-coded printed on the jack the color code shows the order of conductors you'll notice that each conductor has a color orange orange white green green white etc match the color conductors to the color code and plac
