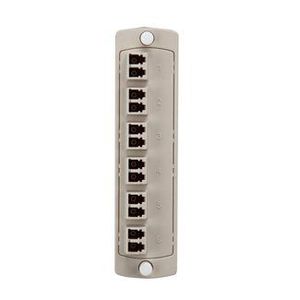

Leviton PLT SDX LC 12F ZIR BG

today I will show you how to terminate leviton's SDX 24 5 or spliced module to do this you will need some tools including airman yarn scissors fiber strippers for 250 and 900 micron fiber a marking pen a sheath cutter some marking tape a tape measure and a small screwdriver you are performing fusion splicing the typical consumables needed include lint-free wipes alcohol a disposal bin for fiber shards and cleaning tools for the instrumentation the parts that come with the STX module include the module an instruction sheet with a marking template for fibers mesh leave used to protect 900 micron buffer fibers or other jacketed cable assemblies as needed nylon tie wraps that you will use throughout the termination process and splice leaves the splice module has two chambers at the top and the bottom the bottom is for trunk storage when the trunk enters the module the top area is for pigtai
