This repair kit supplies the capacitors needed to repair the power supply board inside a LG 26LC2d LCD monitor. This repair kit is for the power supply board pictured above. Please verify that the power supply board inside your LCD monitor or TV matches this power supply board before ordering!

PLEASE NOTE: You are not purchasing a power supply board, only the capacitors needed to repair it!

If your LCD TV or monitor has stopped working, or is displaying one of the following symptoms, then it's a candidate for some new capacitors

- Flickering screen

- Screen image disappears after several seconds

- Dim screen

- Slow start

- Power LED on, but no picture

- Unusual colors and/or lines

The primary cause of LCD TV and monitor failure is caused by faulty capacitors. You can examine the capacitors in your LCD TV or monitor and actually see if they are bad.

If they appear bulged on top, then they need to be replaced.

New capacitors will solve a host of problems in LCD monitors and TV's and will extend the life of your monitor or TV by several years.

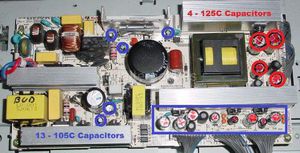

This repair kit contains 17 Electrolytic Capacitors. Thirteen are 105ºC type and are circled and boxed in BLUE. Four are 125ºC type and are circled in RED. The 125ºC temperature rating for Electrolytic Capacitors C221, C222, C234, and C237 is a must, these capacitors are in a heat pocket.

The large 450v 150uf capacitor and the large 450v 68uf capacitor are not included in this kit, these capacitors may be purchased separately, normally they do not fail.

Links to online instructions will be included with the kit.
