Description
Product parameters
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.

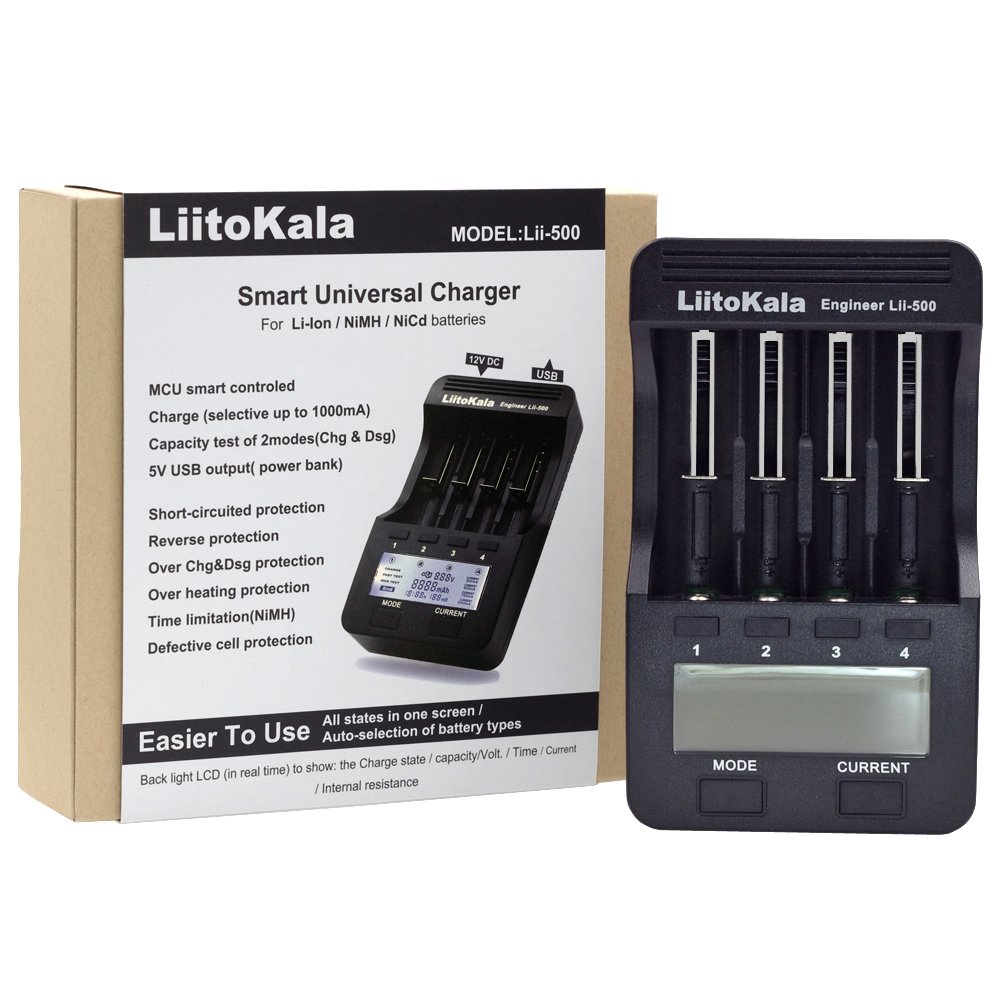

LiitoKala Lii-500 Battery charger for 18650 26650 AA AAA battery LCD display test the battery capacity
Price is below average
Current Price
$27.9
Average
$30.42
Min Price
$22.89
Max Price
$68.21
Price dynamics
8%
Description
Product parameters
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!

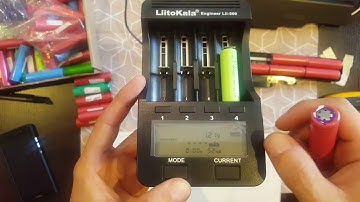

Product review & video
I told my name is Esther dark and today I'm gonna make a review of this a little Carla engineer Li 500 charger so this smart charger input is 12 volts DC and 2 amps so this is the charger little power original charger so you can see it walls and - and output you can use it from 200 from 100 to 240 volts 50 60 Hertz so this is the charger it can charge small AAA batteries or triple A's or just a size batteries so these are DC 1 48 volts so you have 4 types of current you can use 300 500 700 and 1,000 milliamps and you can charge lea on batteries 3.7 volts from 26650 size to 10440 size so here I have 2 AAA batteries I mean hey Barry so you can use only rechargeable battery like you see now here rechargeable battery and this is standard 1800 650 battery so this charger it can also can be used like a portable charger so the thing you have to do is just put a good battery in like this and no
