Description
Main features:
Demist functions. Automatic electrical level adjustment and contour correction.
Gray scale up to 135 level standards.
Mist presence effectively solved.
Excellent image quality, designed with WDR. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
Images easily identified.
It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
It uses an advanced double loop glass design for clearer images.
Specifications:
Brand: LineMak
Model: LS-CDC-CMOSQA
Resolution: 800TVL
Sensor: 1/3" CMOS PC1099 Sensor
Effective pixels: PAL: 976*582; NTSC: 976*494
Video output: 1.0Vp-p, 75ohm (Composite signal)
Frequency: 36Mhz
Lens: 3.6mm
Minimum illumination: 0.5 Lux
Viewing angle: 92°
Operation temperature: -10°C ~ 45°C; 14°F ~ 113°F
Storage temperature: -30°C ~ 60°C; -22°F ~ 140°F
Working humidity: 85%
Power supply: DC 12V
Power consumption: 120mA
Color: White
Size: 3.54(D) * 3.94(H) inches
Weight: 4.76 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): PAL: 1/50s~1/100,000s; NTSC: 1/60s~1/100,000s
Auto Gain Control (AGC): Yes
Scanning system: 2:1 interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: 0.45
Demist functions. Automatic electrical level adjustment and contour correction.
Gray scale up to 135 level standards.
Mist presence effectively solved.
Excellent image quality, designed with WDR. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
Images easily identified.
It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
It uses an advanced double loop glass design for clearer images.
Specifications:
Brand: LineMak
Model: LS-CDC-CMOSQA
Resolution: 800TVL
Sensor: 1/3" CMOS PC1099 Sensor
Effective pixels: PAL: 976*582; NTSC: 976*494
Video output: 1.0Vp-p, 75ohm (Composite signal)
Frequency: 36Mhz
Lens: 3.6mm
Minimum illumination: 0.5 Lux
Viewing angle: 92°
Operation temperature: -10°C ~ 45°C; 14°F ~ 113°F
Storage temperature: -30°C ~ 60°C; -22°F ~ 140°F
Working humidity: 85%
Power supply: DC 12V
Power consumption: 120mA
Color: White
Size: 3.54(D) * 3.94(H) inches
Weight: 4.76 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): PAL: 1/50s~1/100,000s; NTSC: 1/60s~1/100,000s
Auto Gain Control (AGC): Yes
Scanning system: 2:1 interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: 0.45

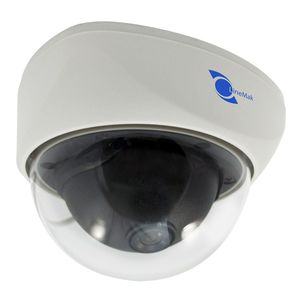

LineMak Dome Camera, 1/3" CMOS Sensor, 800TVL, 3.6mm Lens, Low Illumination, AGC, AWB, for DVR or Surveillance Systems.
