Description
Main features:
• Gray scale up to 135 level standards.
& Mist presence effectively solved.
& Excellent image quality, designed with WDR. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc).
It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
It uses an advanced double loop glass design for clearer images.
Specifications:
Brand: LineMak
Model: LS-NIRD3
Resolution: 800TVL
Sensor: 1/3" SONY Effio-a Color CCD ICX810AK
Effective pixels: 976*494
Video format: NTSC
Video output: 1.0Vp-p, 75ohm (Composite Signal)
Frequency: 36Mhz
Lens: 3.6mm
IR Range: 65ft night vision
LEDs: 23pcs (5mm each)
IR-CUT Filter: Yes
Minimum illumination: 0.05 Lux
Viewing angle: 92°
IR Power ON: CDS Automatic
IR Status: Under 10 LUX by CDS
Operation temperature: -10°C ~ 45°C; 14°F ~ 113°F
Storage temperature: -30°C ~ 60°C; -22°F ~ 140°F
Working humidity: 85% RH
Power supply: DC 12V
Power consumption: 300mA
Size: 3.94(H) * 3.54(D) inches
Weight: 12.52 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): 1/60s~1/100000s
Auto Gain Control (AGC): Yes
Scanning system: 2:1 interlace
Synchronizing system: Internal
S/N Ratio: >48dB (min) (AGC closed)
Gamma correction: 0.45
• Gray scale up to 135 level standards.
& Mist presence effectively solved.
& Excellent image quality, designed with WDR. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc).
It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
It uses an advanced double loop glass design for clearer images.
Specifications:
Brand: LineMak
Model: LS-NIRD3
Resolution: 800TVL
Sensor: 1/3" SONY Effio-a Color CCD ICX810AK
Effective pixels: 976*494
Video format: NTSC
Video output: 1.0Vp-p, 75ohm (Composite Signal)
Frequency: 36Mhz
Lens: 3.6mm
IR Range: 65ft night vision
LEDs: 23pcs (5mm each)
IR-CUT Filter: Yes
Minimum illumination: 0.05 Lux
Viewing angle: 92°
IR Power ON: CDS Automatic
IR Status: Under 10 LUX by CDS
Operation temperature: -10°C ~ 45°C; 14°F ~ 113°F
Storage temperature: -30°C ~ 60°C; -22°F ~ 140°F
Working humidity: 85% RH
Power supply: DC 12V
Power consumption: 300mA
Size: 3.94(H) * 3.54(D) inches
Weight: 12.52 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): 1/60s~1/100000s
Auto Gain Control (AGC): Yes
Scanning system: 2:1 interlace
Synchronizing system: Internal
S/N Ratio: >48dB (min) (AGC closed)
Gamma correction: 0.45

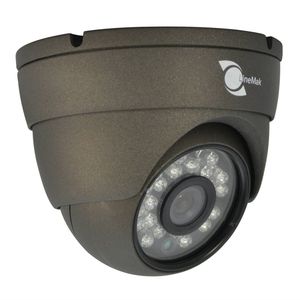

LineMak IR Dome Camera, 1/3" Sony CCD Sensor, 800TVL, 3.6mm Lens, 23pcs LED, 98ft IR Distance, for DVR or Surveillance Systems.
Current Price
$43.99
Average
$43.99
Min Price
$43.99
Max Price
$43.99
