Description
Main features:
IR dome camera.
24pcs LEDs (5mm each).
65ft IR distance.
3.6mm lens.
Metal shell.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-CV342F
Resolution: 700TVL
Sensor: 1/4" HD Digital
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm
Lens: 3.6mm
IR Range: 65ft night vision
LEDs: 24pcs (5mm each)
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 70°
Operation temperature: -20°C ~ 50°C; -4°F ~ 122°F
Weatherproof standard: IP66 (dustproof and waterproof)
Power supply: DC 12V
Power consumption: 500mA
Color: Black
Size: 3.15(H) * 3.54(D) inches
Weight: 9.88 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): PAL: 1/50~1/100,000s; NTSC: 1/60~1/100,000s
Auto Gain Control (AGC): Yes
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: 0.45
IR dome camera.
24pcs LEDs (5mm each).
65ft IR distance.
3.6mm lens.
Metal shell.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-CV342F
Resolution: 700TVL
Sensor: 1/4" HD Digital
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm
Lens: 3.6mm
IR Range: 65ft night vision
LEDs: 24pcs (5mm each)
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 70°
Operation temperature: -20°C ~ 50°C; -4°F ~ 122°F
Weatherproof standard: IP66 (dustproof and waterproof)
Power supply: DC 12V
Power consumption: 500mA
Color: Black
Size: 3.15(H) * 3.54(D) inches
Weight: 9.88 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): PAL: 1/50~1/100,000s; NTSC: 1/60~1/100,000s
Auto Gain Control (AGC): Yes
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: 0.45

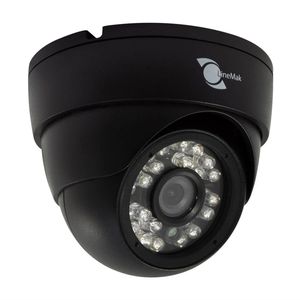

LineMak IR Dome Camera, 1/4" HD Digital Sensor, 700TVL, 3.6mm Lens, 24 LEDs, 65ft IR Distance, IP66 Waterproof, IR Cut Filter, for DVR or Surveillance Systems.
Current Price
$35.99
Average
$35.99
Min Price
$35.99
Max Price
$35.99
