Features:
Product Parameters:
Model:XH-M548
Chip Type:TPA3116D2
Bluetooth module:btm835/csr8635(4.0)
Transmission distance:Max 10m
Voltage:DC12-24V
Current:>3A
Output Power:120Wx2
Efficiency ratio:>90%
Sound track:Dual track
Size:98*79*16mm

Bluetooth module Parameters:
Specification:Bluetooth V4.0
Modulation Mode:GFSK π/4 DQPSK,8DPSK
Voltage:3.3-4.2V
Support Bluetooth Protocol:HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4,DI V1.3
Work Current:≤30mA
Standby Current:＜50uA
Temperature range:-40℃ to +80℃
Wireledd Transmission Distance:10m
Transmit Power:Support CLASS1/CLASS2/CLASS3 8dBm Max
Sensitivity:-80dBm＜0.1%BER
Frequency Range:2.4GHz-2.480GHz
External Interface:PIO,SPI,Audio in/out and PCM,USB
Audio Support:AAC,MPA,SBC,Stereo
Distortion Factor:≤0.1%
Module Size:21.9*14.1*1.8mm

Specification:
Material:plastic and electronic component
Color:blue
Product size:98*79*16mm

Package Included:

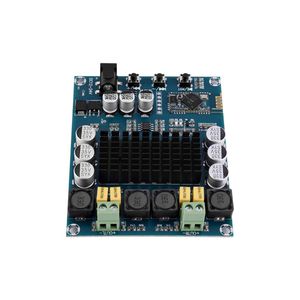

1 x Bluetooth Digital Audio Receiver Amplifier Board

Notes：
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Due to personal measurement technique is different, there may be 1-3 mm error of the physical.Thank you!
