Description
Specification:
Charging Voltage: DC 15V
Single Battery Balance Voltage: 4.2V
Single Battery Balance Current: 42mA
Single Battery Current Consumption: ≤3μA
Max. Continuous Discharging Current: 8A
Overcharge Detection Voltage: 4.35V±0.025V
Overcharge Detection Delay:0.5-1.5s
Overcharge Recovery Voltage: 4.15V±0.05V
Overdischarge Detection Voltage: 2.7V±0.080V
Overdischarge Detection Delay: 50-150ms
Overdischarge Recovery Voltage: 3.0V±0.1V
Overcurrent Detection Voltage: 200±25mV
Overcurrent Detection Voltage: 28±1A
Overcurrent Detection Delay: 5-15ms
Overcurrent Recovery: Auto recovery
Short Circuit Detection Delay: 200-500μs
Short Circuit Recovery: Auto recovery
Operating Temperature: -40~50℃
Storage Temperature: -40~125℃
Package Weight: 4g
Welding Point Description:
B+: Connected to positive pole of battery pack
B3-: Connected to the connection point of battery 1 and battery 2
B2-: Connected to the connection point of battery 2 and battery 3
B1: No need to connect
B-: Connected to negative pole of battery pack
P+: Connected to positive pole of the charge/discharge terminal (Charge terminal and discharge is shared)
P-: Connected to negative pole of the charge/discharge terminal
Package List:
1 x Lithium Battery Protection Board
Charging Voltage: DC 15V
Single Battery Balance Voltage: 4.2V
Single Battery Balance Current: 42mA
Single Battery Current Consumption: ≤3μA
Max. Continuous Discharging Current: 8A
Overcharge Detection Voltage: 4.35V±0.025V
Overcharge Detection Delay:0.5-1.5s
Overcharge Recovery Voltage: 4.15V±0.05V
Overdischarge Detection Voltage: 2.7V±0.080V
Overdischarge Detection Delay: 50-150ms
Overdischarge Recovery Voltage: 3.0V±0.1V
Overcurrent Detection Voltage: 200±25mV
Overcurrent Detection Voltage: 28±1A
Overcurrent Detection Delay: 5-15ms
Overcurrent Recovery: Auto recovery
Short Circuit Detection Delay: 200-500μs
Short Circuit Recovery: Auto recovery
Operating Temperature: -40~50℃
Storage Temperature: -40~125℃
Package Weight: 4g
Welding Point Description:
B+: Connected to positive pole of battery pack
B3-: Connected to the connection point of battery 1 and battery 2
B2-: Connected to the connection point of battery 2 and battery 3
B1: No need to connect
B-: Connected to negative pole of battery pack
P+: Connected to positive pole of the charge/discharge terminal (Charge terminal and discharge is shared)
P-: Connected to negative pole of the charge/discharge terminal
Package List:
1 x Lithium Battery Protection Board

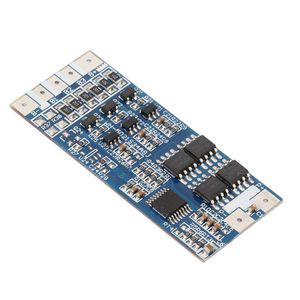

Lithium Battery Charger Board, Keenso 3S 8A 10.8V 11.1V 12.6V 18650 Lithium Battery Charging Protection Board BMS PCB Board with Balance Charging
Price is below average
Current Price
$7.59
Average
$9.69
Min Price
$2.99
Max Price
$13.79
Price dynamics
22%
Description
Specification:
Charging Voltage: DC 15V
Single Battery Balance Voltage: 4.2V
Single Battery Balance Current: 42mA
Single Battery Current Consumption: ≤3μA
Max. Continuous Discharging Current: 8A
Overcharge Detection Voltage: 4.35V±0.025V
Overcharge Detection Delay:0.5-1.5s
Overcharge Recovery Voltage: 4.15V±0.05V
Overdischarge Detection Voltage: 2.7V±0.080V
Overdischarge Detection Delay: 50-150ms
Overdischarge Recovery Voltage: 3.0V±0.1V
Overcurrent Detection Voltage: 200±25mV
Overcurrent Detection Voltage: 28±1A
Overcurrent Detection Delay: 5-15ms
Overcurrent Recovery: Auto recovery
Short Circuit Detection Delay: 200-500μs
Short Circuit Recovery: Auto recovery
Operating Temperature: -40~50℃
Storage Temperature: -40~125℃
Package Weight: 4g
Welding Point Description:
B+: Connected to positive pole of battery pack
B3-: Connected to the connection point of battery 1 and battery 2
B2-: Connected to the connection point of battery 2 and battery 3
B1: No need to connect
B-: Connected to negative pole of battery pack
P+: Connected to positive pole of the charge/discharge terminal (Charge terminal and discharge is shared)
P-: Connected to negative pole of the charge/discharge terminal
Package List:
1 x Lithium Battery Protection Board
Charging Voltage: DC 15V
Single Battery Balance Voltage: 4.2V
Single Battery Balance Current: 42mA
Single Battery Current Consumption: ≤3μA
Max. Continuous Discharging Current: 8A
Overcharge Detection Voltage: 4.35V±0.025V
Overcharge Detection Delay:0.5-1.5s
Overcharge Recovery Voltage: 4.15V±0.05V
Overdischarge Detection Voltage: 2.7V±0.080V
Overdischarge Detection Delay: 50-150ms
Overdischarge Recovery Voltage: 3.0V±0.1V
Overcurrent Detection Voltage: 200±25mV
Overcurrent Detection Voltage: 28±1A
Overcurrent Detection Delay: 5-15ms
Overcurrent Recovery: Auto recovery
Short Circuit Detection Delay: 200-500μs
Short Circuit Recovery: Auto recovery
Operating Temperature: -40~50℃
Storage Temperature: -40~125℃
Package Weight: 4g
Welding Point Description:
B+: Connected to positive pole of battery pack
B3-: Connected to the connection point of battery 1 and battery 2
B2-: Connected to the connection point of battery 2 and battery 3
B1: No need to connect
B-: Connected to negative pole of battery pack
P+: Connected to positive pole of the charge/discharge terminal (Charge terminal and discharge is shared)
P-: Connected to negative pole of the charge/discharge terminal
Package List:
1 x Lithium Battery Protection Board
