Specifications:
Protection
Polymer/Terpolymer/Lithium Manganate
LiFePO4
Single Battery Overcharge Protection Voltage：
4.25V±0.025V
3.75V±0.025V
Single Battery Overcharge Protection Recovery Voltage：
4.050V±0.025V
3.60V±0.025V
Overcharge Protection Delay：
1000ms±100ms
1000ms±100ms
Single Battery Over-discharge Protection Voltage：
2.75±0.025V
2.10V±0.025V
Single Battery Over-discharge Protection Recovery Voltage：
3.00V±0.025V
2.30V±0.025V
Over-discharge Protection Delay：
100ms±10ms
100ms±10ms
Discharge Over-current Protection：
60A±5A
60A±5A
Discharge Over-current Delay：
200ms±20ms
200ms±20ms
Short Circuit Protection：
Yes
Yes
Short Circuit Delay：
200uS±20uS
200uS±20uS
Short Circuit Protection Recovery：
Disconnect Load Release
Disconnect Load Release
Charge Current：
5A(adjustable)
5A(adjustable)
Equilibrium Function：
Yes
Yes
Equilibrium Current：
50~60mA
50~60mA
Equilibrium Accuracy：
±25mV
±25mV
Size: 93*87*10mm / 3.66*3.42*0.39"
Wire Length: 400mm / 15.74"

Package Includes:

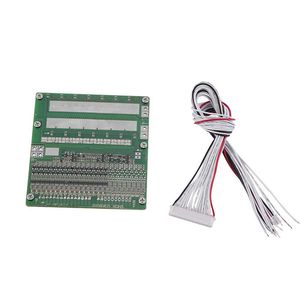

1 x Protection Board
