Description
Camera
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:4MP
Max. Resolution:2560 (H) × 1440 (V)
RAM : 1GB
ROM : 4GB
Electronic Shutter Speed:1/1 s-1/30,000 s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.8 ; B/W: 0.0005Lux@F1.8 ; 0Lux (IR light on)
IR Distance:15 m (49.21 ft)
IR On/Off Control:Zoom Prio/Manual/SmartIR
IR LEDs Number:3
Lens
Focal Length:2.8 mm-12 mm
Max. Aperture:F1.8-F2.7
Field of View:H: 31.6°-96.9°; V: 17.8°-51.4°; D: 36.4°-116.2°
Optical Zoom:4x
Focus Control:Auto/Semi-Auto/Manual
Close Focus Distance:0.2 m-0.5 m (0.66 ft-1.64 ft)
Iris Control : Auto
PTZ
Pan/Tilt Range :Pan: 0°-355°; Tilt: 5°-90°
Manual Control Speed : Pan: 0.1°/s-70°/s; Tilt: 0.1°/s-30°/s
Preset Speed:Pan: 80°/s; Tilt: 40°/s
Presets:300
Tour:8 (up to 32 presets per tour)
Speed Adjustment:Support
Power-off Memory:Support
Idle Motion:Preset/Tour
Artificial Intelligence
People Counting:Count people in the area; generate report
Perimeter Protection:Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection : Support
SMD Plus : Support
Network
Ethernet:RJ-45 (10/100Base-T)
Protocol:IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability:ONVIF; CGI
Streaming Method:Unicast/Multicast
User/Host:20
Edge Storage :FTP; Micro SD card (256G); P2P
Browser:IE; Chrome; Firefox; Safari (no version restriction)
Management Software:SmartPSS;DSS
Smart Phone:iOS/Android
Power
Power Supply:DC12V/1.5A±15%;PoE (802.3af)
Power Consumption:3W;8.5W (IR on)
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:4MP
Max. Resolution:2560 (H) × 1440 (V)
RAM : 1GB
ROM : 4GB
Electronic Shutter Speed:1/1 s-1/30,000 s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.8 ; B/W: 0.0005Lux@F1.8 ; 0Lux (IR light on)
IR Distance:15 m (49.21 ft)
IR On/Off Control:Zoom Prio/Manual/SmartIR
IR LEDs Number:3
Lens
Focal Length:2.8 mm-12 mm
Max. Aperture:F1.8-F2.7
Field of View:H: 31.6°-96.9°; V: 17.8°-51.4°; D: 36.4°-116.2°
Optical Zoom:4x
Focus Control:Auto/Semi-Auto/Manual
Close Focus Distance:0.2 m-0.5 m (0.66 ft-1.64 ft)
Iris Control : Auto
PTZ
Pan/Tilt Range :Pan: 0°-355°; Tilt: 5°-90°
Manual Control Speed : Pan: 0.1°/s-70°/s; Tilt: 0.1°/s-30°/s
Preset Speed:Pan: 80°/s; Tilt: 40°/s
Presets:300
Tour:8 (up to 32 presets per tour)
Speed Adjustment:Support
Power-off Memory:Support
Idle Motion:Preset/Tour
Artificial Intelligence
People Counting:Count people in the area; generate report
Perimeter Protection:Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection : Support
SMD Plus : Support
Network
Ethernet:RJ-45 (10/100Base-T)
Protocol:IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability:ONVIF; CGI
Streaming Method:Unicast/Multicast
User/Host:20
Edge Storage :FTP; Micro SD card (256G); P2P
Browser:IE; Chrome; Firefox; Safari (no version restriction)
Management Software:SmartPSS;DSS
Smart Phone:iOS/Android
Power
Power Supply:DC12V/1.5A±15%;PoE (802.3af)
Power Consumption:3W;8.5W (IR on)

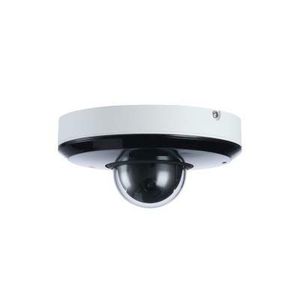

Loryta SD1A404XB-GNR 4M 4X Starlight IR PTZ AI Network Camera PoE Face Detection English Version
Current Price
$199.99
Average
$199.99
Min Price
$199.99
Max Price
$199.99
Description
Camera
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:4MP
Max. Resolution:2560 (H) × 1440 (V)
RAM : 1GB
ROM : 4GB
Electronic Shutter Speed:1/1 s-1/30,000 s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.8 ; B/W: 0.0005Lux@F1.8 ; 0Lux (IR light on)
IR Distance:15 m (49.21 ft)
IR On/Off Control:Zoom Prio/Manual/SmartIR
IR LEDs Number:3
Lens
Focal Length:2.8 mm-12 mm
Max. Aperture:F1.8-F2.7
Field of View:H: 31.6°-96.9°; V: 17.8°-51.4°; D: 36.4°-116.2°
Optical Zoom:4x
Focus Control:Auto/Semi-Auto/Manual
Close Focus Distance:0.2 m-0.5 m (0.66 ft-1.64 ft)
Iris Control : Auto
PTZ
Pan/Tilt Range :Pan: 0°-355°; Tilt: 5°-90°
Manual Control Speed : Pan: 0.1°/s-70°/s; Tilt: 0.1°/s-30°/s
Preset Speed:Pan: 80°/s; Tilt: 40°/s
Presets:300
Tour:8 (up to 32 presets per tour)
Speed Adjustment:Support
Power-off Memory:Support
Idle Motion:Preset/Tour
Artificial Intelligence
People Counting:Count people in the area; generate report
Perimeter Protection:Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection : Support
SMD Plus : Support
Network
Ethernet:RJ-45 (10/100Base-T)
Protocol:IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability:ONVIF; CGI
Streaming Method:Unicast/Multicast
User/Host:20
Edge Storage :FTP; Micro SD card (256G); P2P
Browser:IE; Chrome; Firefox; Safari (no version restriction)
Management Software:SmartPSS;DSS
Smart Phone:iOS/Android
Power
Power Supply:DC12V/1.5A±15%;PoE (802.3af)
Power Consumption:3W;8.5W (IR on)
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:4MP
Max. Resolution:2560 (H) × 1440 (V)
RAM : 1GB
ROM : 4GB
Electronic Shutter Speed:1/1 s-1/30,000 s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.8 ; B/W: 0.0005Lux@F1.8 ; 0Lux (IR light on)
IR Distance:15 m (49.21 ft)
IR On/Off Control:Zoom Prio/Manual/SmartIR
IR LEDs Number:3
Lens
Focal Length:2.8 mm-12 mm
Max. Aperture:F1.8-F2.7
Field of View:H: 31.6°-96.9°; V: 17.8°-51.4°; D: 36.4°-116.2°
Optical Zoom:4x
Focus Control:Auto/Semi-Auto/Manual
Close Focus Distance:0.2 m-0.5 m (0.66 ft-1.64 ft)
Iris Control : Auto
PTZ
Pan/Tilt Range :Pan: 0°-355°; Tilt: 5°-90°
Manual Control Speed : Pan: 0.1°/s-70°/s; Tilt: 0.1°/s-30°/s
Preset Speed:Pan: 80°/s; Tilt: 40°/s
Presets:300
Tour:8 (up to 32 presets per tour)
Speed Adjustment:Support
Power-off Memory:Support
Idle Motion:Preset/Tour
Artificial Intelligence
People Counting:Count people in the area; generate report
Perimeter Protection:Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection : Support
SMD Plus : Support
Network
Ethernet:RJ-45 (10/100Base-T)
Protocol:IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability:ONVIF; CGI
Streaming Method:Unicast/Multicast
User/Host:20
Edge Storage :FTP; Micro SD card (256G); P2P
Browser:IE; Chrome; Firefox; Safari (no version restriction)
Management Software:SmartPSS;DSS
Smart Phone:iOS/Android
Power
Power Supply:DC12V/1.5A±15%;PoE (802.3af)
Power Consumption:3W;8.5W (IR on)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
what's going on everyone it's richard with home tech video here to review a dawa three times optical zoom starlight mini pan tilt zoom camera I'll have a link in the description below if you're interested in learning on where to find and buy this one so let's go and jump right in with this review so the first thing that you might notice about this camera is how its designed it's a little bit different than most dome cameras or most pan tilt zoom cameras the lens is on the top surrounded by a fairly wide base the white material is a powdered coated metal finish and on the bottom it does feature a SD card slot with two screws to hold it in place and on the top is a locking screw that holds the base in place for when you're mounting it when you're using this mounting plate just make sure that the tab is facing downward and then towards the camera and then you would align the three screws o
