Description

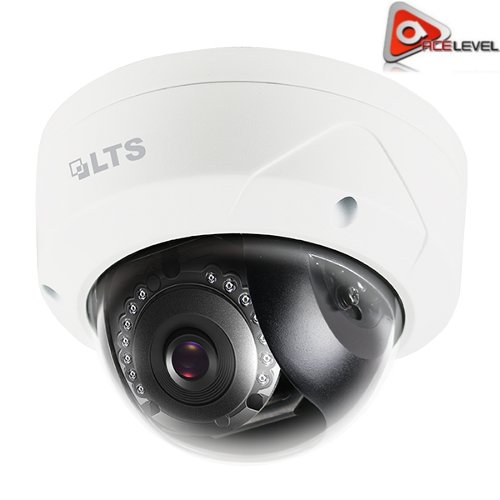

OVERVIEW 2.1MP High Definition 12 IR LED up to 70ft 3D DNR, BLC, DWDR 3-Axis IP66, Vandal Proof DC 12V, PoE CAMERA Image Sensor: 1/2.8" Progres s ive S can CMOS Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Speed: 1/3 s to 1/10,000 s Lens: 2.8mm Lens Mount: M12 Day &Night: IR cut fi lter with auto s witch DNR: 3D DNR Wide Dynamic Range: Digital WDR Swivel and Tilt: Swivel: -9 0° ~ 90°, Til t: 0 ° ~ 75° COMPRESSION STANDARD Video Compression: H.264 / MJ PEG H.264 Type: Main Profile Video Bit Rate: 32 Kbps ~ 8 Mbps Dual streams: Support IMAGE Max. Resolution:1920 × 1080 Frame Rate: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) Image Setting: Rotate Mode, Saturation, Brightness , Contrast, Sharpness adjustable by client software or web browser BLC: Support, zone configurable ROI Codec: Support NETWORK Network Storage: NAS (Support NFS,SMB/CIFS) Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols:T CP/IP, UDP, ICMP, HT T P, HT T PS , FT P, DHCP, DNS , DDNS , RT P, RT S P, RT CP, PPPoE, NT P, UPnP, S MT P, S NMP, IGMP, 802.1X, QoS , IPv6, Bonjour General: One- key reset, Flash- prevention, dual stream, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access Standard: ONVIF (PROFILE S , PROFILE G), PS IA, CGI, IS API INTERFACE Communication Interface: 1 RJ 45 10M/100M Ethernet port On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128GB Reset: Yes GENERAL Working Temperature/Humidity: - 22 °F ~ 140 °F (- 30 °C ~ 60 °C) Humidity 95% or les s (non- condens ing) Power Supply: DC 12V ± 10%, PoE (802.3af) Power Consumption: Max. 5W IR Range: 12 IR LED up to 70ft Weather Proof Ratings: IP66 Impact Protection: IK08 Dimensions: Φ4.4" × 3.2" (Φ111×82.0mm) Weight: 1.1 lbs (500g)
