Description

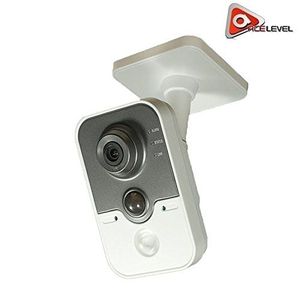

CMIP8932-W
Image Sensor: 1/3" sensor
Min. Illumination: 0.01 lux @F1.2, AGC on; 0 lux with IR
Shutter Speed: 1/25s~1/100,000s
Lens: 4mm @F2.0
Lens Mount: M12
Day & Night: IR cut filter with auto switch
H.264 codec profile: Main profile
Bit Rate: 32 Kbps~16 Mbps
Audio compression: G.711/G.726/MP2L2
Audio bit rate: 64Kbps(G.711)/16Kbps(G.726)/32-128Kbps(MP2L2)
Max. Resolution: 2048x1536
Frame Rate: 60Hz: 20fps (2048x1536),30fps (1920x1080), 30fps(1280x720)
50Hz: 20fps (2048x1536), 25fps (1920x1080), 25fps(1280x720)
Image Settings: Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
ROI: Yes, up to 3 configurable areas
Alarm Trigger: Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect,IP address conflict, Storage exception
System compatibility: ONVIF, PSIA, CGI, ISAPI
General functionalities: Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Communication Interface: 1 RJ45 10M/100M Ethernet interface
On-board Storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Alarm I/O: 1/1
Wi-Fi standard: IEEE802.11b, 802.11g, 802.11n Draft
Frequency range: 2.4 GHz ~ 2.4835 GHz
Communication bandwidth: Support 20/40 MHz
Protocols: 802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM
802.11g/n: OFDM: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Transmission range: Outdoor: 200m, Indoor: 50m(depend on environment)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n Draft
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V±10% / PoE(802.3af)
Power Consumption: Max. 5W
PIR: Angle: 80°
IR Range: 33ft
Dimension: 2.60x3.60x5.17"
